Merge Operator

Overview

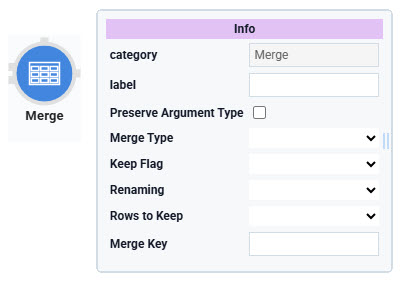

A static image displaying the Data Workflow component's Merge Operator icon and configuration window.

The Data Workflow Merge operator lets you combine or separate data from two data tables using key/value pairs. Controlling how data merges depends on the chosen feature and how you use the operator's two input ports.

The Merger operator supports the following features:

  • Intersection: Combines all table values that share the same key.

  • Inner: Combines all table values that share the same key, adding one table's values to the other table.

  • Outer: Separates out values from one table that do not share the same key as the other table.

You'll find the Merge operator under the Table group to the left of the Data Workflow canvas.

About the Info Window

Learn more about each setting in the Merge operator's Info window:

Info

Category

Grayed-out and non-adjustable setting indicating the operation type.

Label

Sets the label for your operator, displaying below the operator on your Data Workflow canvas.

This field is optional, but set a label if you use more than one of the same operator type. A label helps you identify your operators without opening any Info windows.

Keep Flag

This indicator displays in the DevTools Console The DevTools Console helps you securely store, build, test, and deploy your software. for each row merged. Selecting True creates a flag that describes how you chose to merge the information. If True, a _merge_flag displays in the merged row.

Left refers to the data table connected to the upper input port. Right refers to the data table connected to the lower input port.

Merge Type

This drop-down lets you select how you want your data sets to merge.

  • Inner: Merges rows from the lower input table into the upper input table. The values merged must share the same key.

  • Outer: Separates all values from the upper input table whose key does not match the lower input table.

  • Intersection: Combines all values whose keys match.

You can use the Intersection option like a filter. You can filter a key to help you find matching values from both tables.

Merge Key

The reference key of the data you want to merge. This key can be the heading of a column in your data tables.

Renaming

This drop-down lets you rename, replace, or combine merged data.

Rows to Keep

This drop-down lets you pick which values you want to keep from your data tables. This setting is important when the values you want have more than one match.

  • First: Keeps the first row that matches in both tables.

  • Last: Keeps the last row that matches in both tables.

  • All: Keeps every row of both tables and combines them into a single array.

Merge Key

This is the reference key of the data you want to merge. This key can be the heading of a column in your data tables.

Adding a Merge Operator

For this example, create two Data Table components that store a list of annuitants and date of births in first table, and list of annuitants and their premiums in the second table. Then, set up a Data Workflow component to perform an intersection on the two data tables.

Configure the First Data Table Component

First, set up a Data Table component with a list of annuitants and their dates of birth.

1. In the Module Builder, drag and drop a Data Table component onto your canvas.
2. In the Property ID A Property ID is the unique field ID used by Unqork to track and link components in your module. field, enter dtAnnuitant.
3. In the data table, enter the following:


A

B

1

annuitant

dob

2

Kris Marrier

01/01/1990

3

Mattie Poquette

12/12/1989

4

Ezekiel Chui

04/05/1980

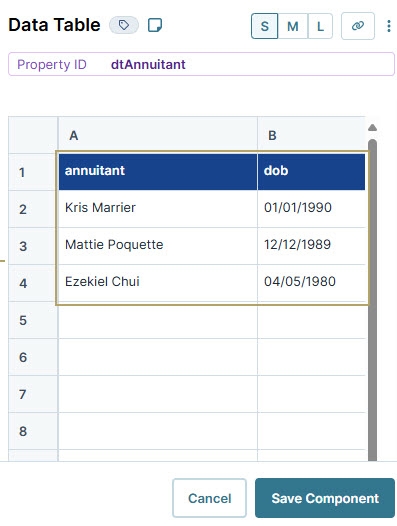

A static image displaying the list of annuitants and their dates of birth.

4. Click Save Component.

Configure the Second Data Table Component

Next, set up a Data Table component with another list of annuitants and their insurance policy premiums.

1. Drag and drop a Data Table component onto your canvas, placing it below the dtAnnuitant Data Tablecomponent.
2. In the Property ID A Property ID is the unique field ID used by Unqork to track and link components in your module. field, enter dtPremiums.
3. In the data table, enter the following:


A

B

1

annuitant

premium

2

Kris Marrier

50000

3

Mattie Poquette

25000

4

Willow Kusko

20000

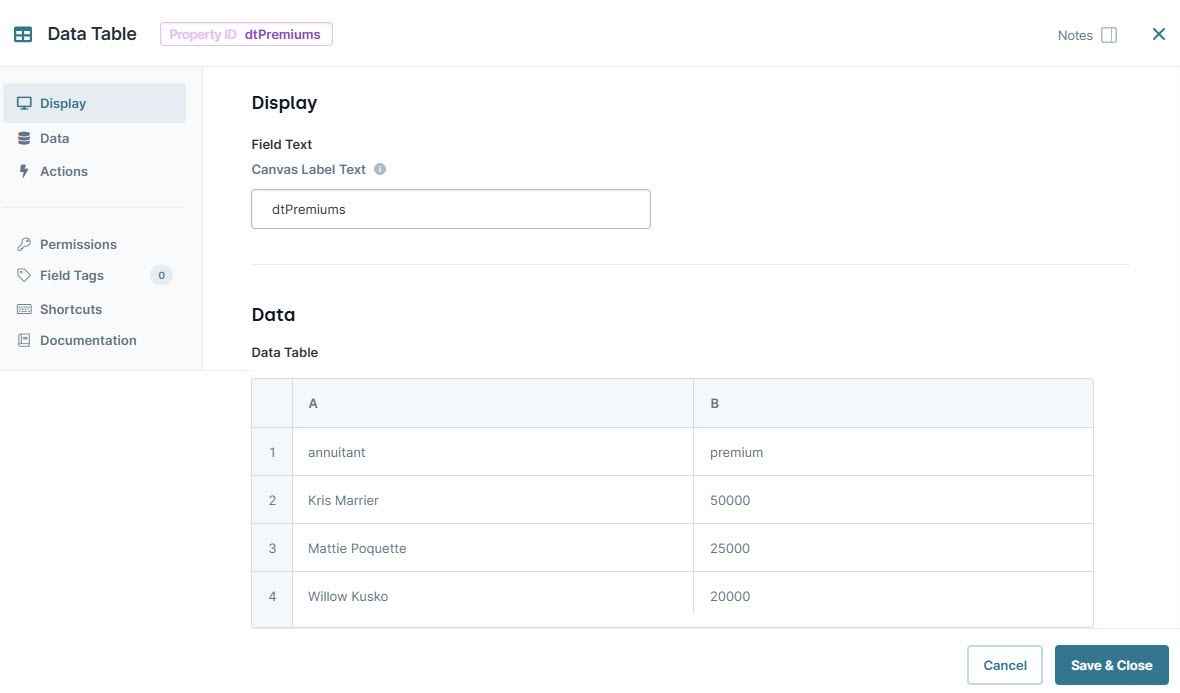

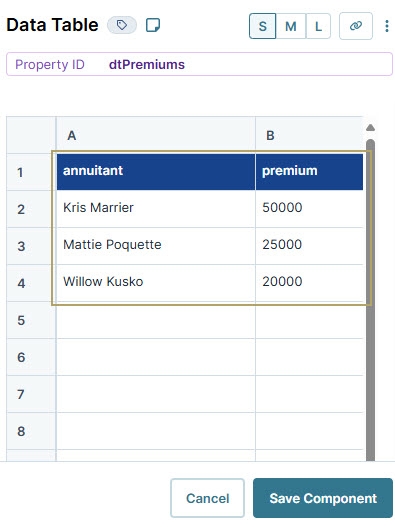

A static image displaying the list of annuitants and their insurance policy premiums.

4. Click Save Component.

Configure the Data Workflow Component

Next, configure a Data Workflow component to merge the data table values based on a key. Then, add a Console operator to view the merged data in the DevTools Console The DevTools Console helps you securely store, build, test, and deploy your software..

1. Drag and drop a Data Workflow component onto your canvas, placing it below your your dtPremium Data Table component.
2. In the Property ID A Property ID is the unique field ID used by Unqork to track and link components in your module. and Canvas Label Text Canvas Label Text indicates the purpose of the corresponding field or component. For non-input components, the Canvas Label Text isn't end-user facing, and only appears in the . fields, enter dwfMergeIntersection.

Configure the First Input Operator

1. Drag and drop an Input operator onto your Data Workflow canvas.
2. Configure the operator's Info window as follows:
Info

Category

Input

Component

dtAnnuitant

Required

Yes

Source

Default

Configure the Second Input Operator

1. Drag and drop another Input operator onto your Data Workflow canvas.
2. Configure the operator's Info window as follows:
Info

Category

Input

Component

dtPremiums

Required

Yes

Source

Default

Configure the Merge Operator

1. Drag and drop a Merge operator onto your Data Workflow canvas.
2. Configure the operator's Info window as follows:
Info

Category

Merge

label

Merge Intersection

Merge Type

Intersection

Keep Flag

False

Renaming

Replace

Rows to Keep

First

Merge Key

Annuitant

3. Connect the output port (right) of the dtAnnuitant Input operator to the upper input port (left) of the Merge operator.
4. Connect the output port (right) of the dtPremiums Input operator to the lower input port (left) of the Merge operator.

Configure the Console Operator

Add a Console operator as an output to the Merge operator so you can review the results in the DevTools Console The DevTools Console helps you securely store, build, test, and deploy your software..

1. Drag and drop a Console operator onto your Data Workflow canvas.
2. Configure the operator's Info window as follows:
Info

Category

Console

Label

Intersection Result

3. Connect the output port (right) of the Merge operator to the input port (left) of the Console operator.
4. Click Save Component.

Here's how the completed Data Workflow looks:

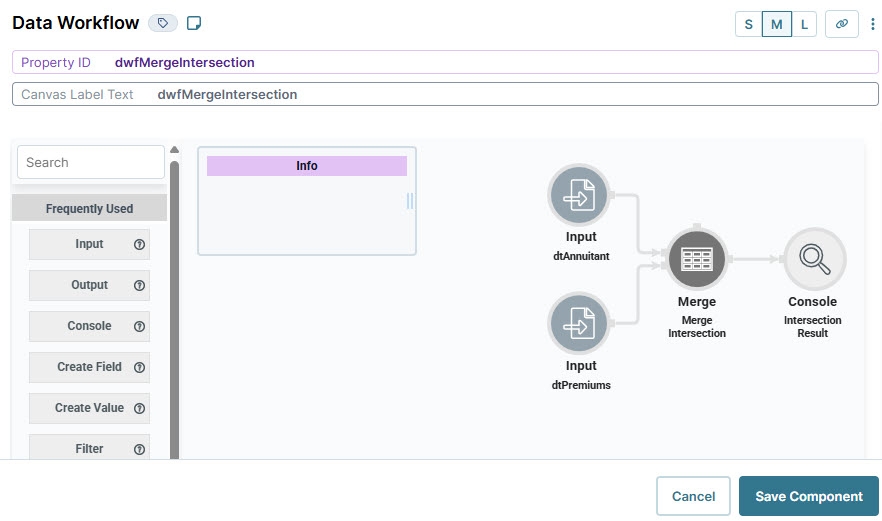

A static iamge displaying the configuration of the Merge operator that connects the two data tables.

Configure the Button Component

Lastly, configure a Button component to trigger the Data Workflow.

1. Drag and drop a Button component Icon Button component onto your canvas, placing it below the Data Workflow component.
2. In the Property ID A Property ID is the unique field ID used by Unqork to track and link components in your module., enter btnMergeIntersection.
3. In the Label Text Label Text conveys what the input component is and what information it displays. Enter the purpose of the corresponding component or field., enter Intersection Merge.
4. From the Action Type drop-down, select Event.
5. From the On Click drop-down, select dwfMergeIntersection.

A static image displaying the Action type and Triggers in Button component

6. Click Save Component.
7.  Save  your module.

Here's how the completed use case looks in the Module Builder:

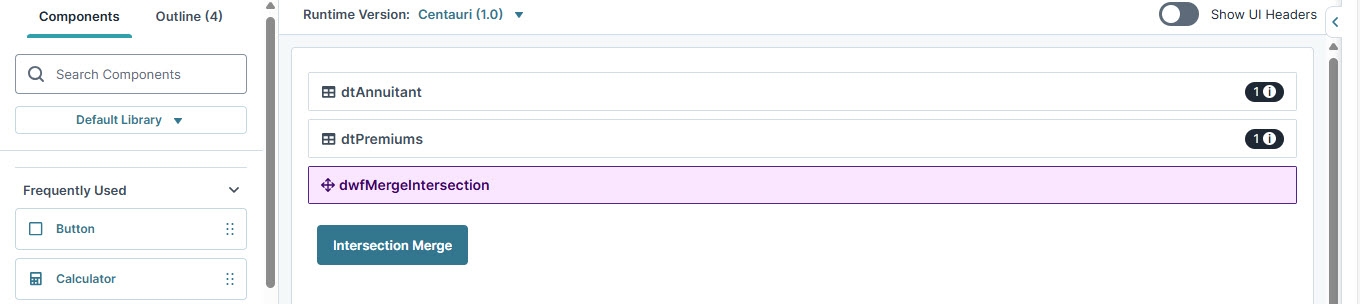

A static image displaying the Merge Operator configuration in the Module Builder

Now you can test out your Data Workflow. Preview your module in Express View Express View is how your end-user views your application. Express View also lets you preview your applications to test your configuration and view the styling. This is also the view your end-users will see when interacting with your application. After configuring a module, click Preview in the Module Builder to interact with the module in Express View. and open the DevTools Console The DevTools Console helps you securely store, build, test, and deploy your software.. Then, click the button to see the results of the intersection function. The Data Workflow combines Kris Marrier and Mattie Poquette with their birthdates and insurance premiums, as expected. Ezekiel Chui and Willow Kusko do not share information between tables, so they do not merge or display in the new table.



Overview

A static image displaying the Data Workflow component's Merge Operator icon and configuration window.

The Data Workflow Merge operator lets you combine or separate data from two data tables using key/value pairs. Controlling how data merges depends on the chosen feature and how you use the operator's two input ports.

The Merger operator supports the following features:

  • Intersection: Combines all table values that share the same key.

  • Inner: Combines all table values that share the same key, adding one table's values to the other table.

  • Outer: Separates out values from one table that do not share the same key as the other table.

You'll find the Merge operator under the Table group to the left of your canvas.

About the Info Window

Learn more about each setting in the Merge operator's Info window:

Setting Description

Category

Grayed-out and non-adjustable setting indicating the operation type.

Label

Sets the label for your operator, displaying below the operator on your Data Workflow canvas.

This field is optional, but set a label if you use more than one of the same operator type. A label helps you identify your operators without opening any Info windows.

Merge Type

This drop-down lets you select how you want your data sets to merge.

  • Inner: Merges rows from the lower input table into the upper input table. The values merged must share the same key.

  • Outer: Separates all values from the upper input table whose key does not match the lower input table.

  • Intersection: Combines all values whose keys match.

You can use the Intersection option like a filter. You can filter a key to help you find matching values from both tables.

Keep Flag

This indicator displays in the DevTools Console The DevTools Console helps you securely store, build, test, and deploy your software. for each row merged. Selecting True creates a flag that describes how you chose to merge the information. If True, a _merge_flag displays in the merged row.

Left refers to the data table connected to the upper input port. Right refers to the data table connected to the lower input port.

Renaming

This drop-down lets you rename, replace, or combine merged data.

Rows to Keep

This drop-down lets you pick which values you want to keep from your data tables. This setting is important when the values you want have more than one match.

  • First: Keeps the first row that matches in both tables.

  • Last: Keeps the last row that matches in both tables.

  • All: Keeps every row of both tables and combines them into a single array.

Merge Key

This is the reference key of the data you want to merge. This key can be the heading of a column in your data tables.

Adding a Merge Operator

For this example, create two Data Table components that store a list of annuitants and date of births in first table, and list of annuitants and their premiums in the second table. Then, set up a Data Workflow component to perform an intersection on the two data tables.

Configure the First Data Table Component

First, set up a Data Table component with a list of annuitants and their dates of birth.

1. In the Module Builder, drag and drop a Data Table component onto your canvas.
2. In the Label Text Label Text conveys what the input component is and what information it displays. Enter the purpose of the corresponding component or field. and Property ID A Property ID is the unique field ID used by Unqork to track and link components in your module., enter dtAnnuitant.
3. In the data table, enter the following:

annuitant

dob

Kris Marrier

01/01/1990

Mattie Poquette

12/12/1989

Ezekiel Chui

04/05/1980

A static image displaying the annuitants data table.

4. Click Save.

Configure the Second Data Table Component

Next, set up a Data Table component with another list of annuitants and their insurance policy premiums.

1. Drag and drop another Data Table component onto your canvas.
2. In the Label Text Label Text conveys what the input component is and what information it displays. Enter the purpose of the corresponding component or field. and Property ID A Property ID is the unique field ID used by Unqork to track and link components in your module., enter dtPremiums.
3. In the data table, enter the following:

annuitant

premium

Kris Marrier

50000

Mattie Poquette

25000

Willow Kusko

20000

A static image displaying the Premiums data table.

4. Click Save.

Configure the Data Workflow Component

Next, configure a Data Workflow component to merge the data table values based on a key. Then, add a Console operator to view the merged data in the DevTools Console The DevTools Console helps you securely store, build, test, and deploy your software..

1. Drag and drop a Data Workflow onto your canvas, placing it below your Data Table component.
2. In the Canvas Label Text Canvas Label Text indicates the purpose of the corresponding field or component. For non-input components, the Canvas Label Text isn't end-user facing, and only appears in the . and Property ID A Property ID is the unique field ID used by Unqork to track and link components in your module. fields, enter dwfMergeIntersection.

Configure the First Input Operator

1. Drag and drop an Input operator onto your Data Workflow canvas.
2. Configure the operator's Info window as follows:
Setting Value

Category

Input

Component

dtAnnuitant

Required

Yes

Source

Default

Configure the Second Input Operator

1. Drag and drop another Input operator onto your Data Workflow canvas.
2. Configure the operator's Info window as follows:
Setting Value

Category

Input

Component

dtPremiums

Required

Yes

Source

Default

Configure the Merge Operator

1. Drag and drop a Merge operator onto your Data Workflow canvas.
2. Configure the operator's Info window as follows:
Setting Value

Category

Merge

Label

Merge Intersection

Merge Type

Intersection

Keep Flag

False

Renaming

Replace

Rows to Keep

First

Merge Key

annuitant

3. Connect the output port (right) of the dtAnnuitant Input operator to the upper input port (left) of the Merge operator.
4. Connect the output port (right) of the dtPremiums Inputoperator to the lower input port (left) of the Merge operator.

Configure the Console Operator

Add a Console operator as an output to the Merge operator. This lets you see the result of the merge.

1. Drag and drop a Console operator onto your Data Workflow canvas.
2. Configure the operator's Info window as follows:
Setting Value

Category

Console

Label

Intersection Result

3. Connect the output port (right) of the Merge operator to the input port (left) of the Console operator.
4. Click Save.

Here's how the completed Data Workflow looks:

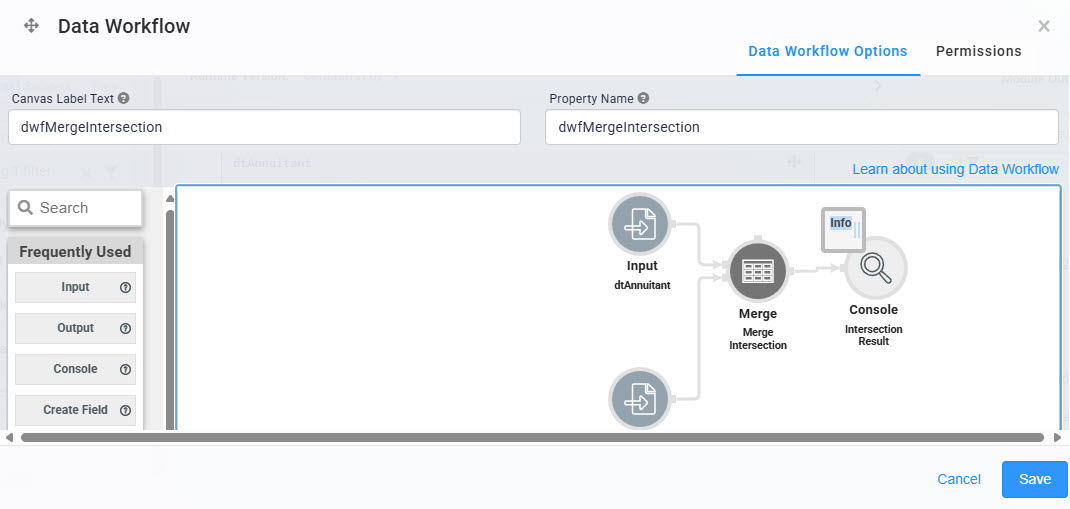

A static iamge displaying the Data Workflow, used to perform the merge operation.

Configure the Button Component

Lastly, configure a Button component to trigger the Data Workflow.

1. Drag and drop a Button component Icon Button component onto your canvas, placing it below the Data Workflow component.
2. In the Property ID A Property ID is the unique field ID used by Unqork to track and link components in your module., enter btnMergeIntersection.
3. In the Label Text Label Text conveys what the input component is and what information it displays. Enter the purpose of the corresponding component or field., enter Intersection Merge.
4. From the Action Type drop-down, select Event.
5. From the On Click drop-down, select dwfMergeIntersection.

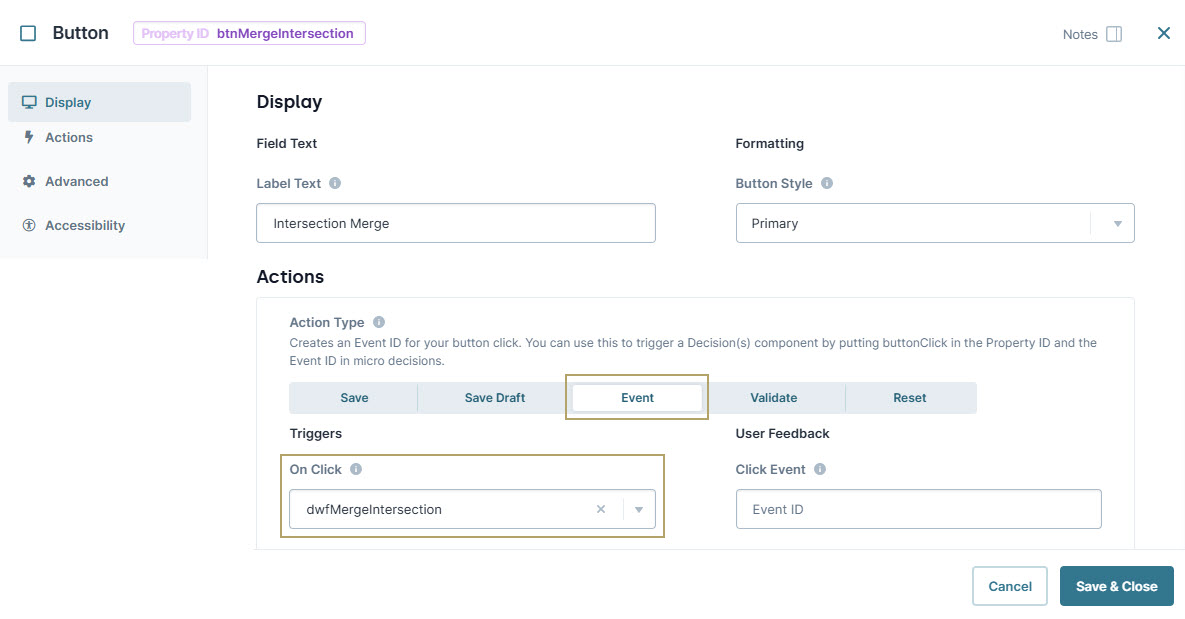

A static image displaying the Button component configuration.

6. Click Save.
7. Save your module.

Here's how the completed use case looks in the Module Builder:

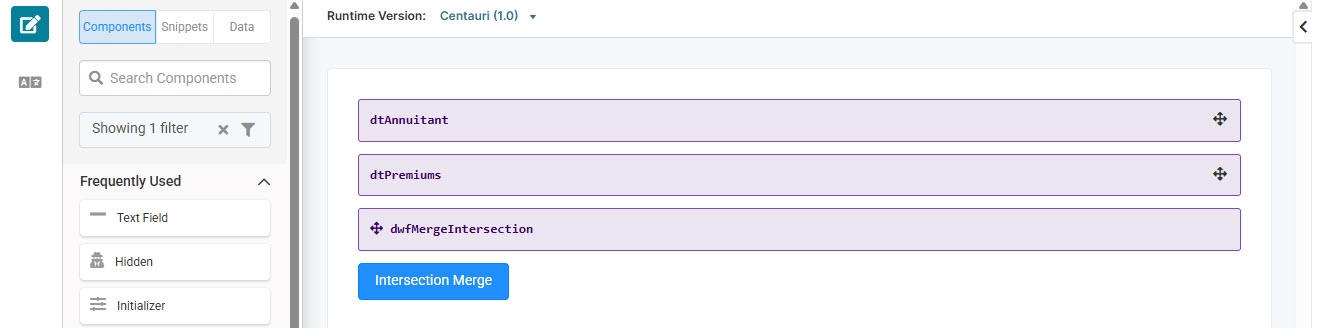

A static image displaying the complete usecase in Module Builder.

Now you can test out your Data Workflow. Preview your module in Express View Express View is how your end-user views your application. Express View also lets you preview your applications to test your configuration and view the styling. This is also the view your end-users will see when interacting with your application. After configuring a module, click Preview in the Module Builder to interact with the module in Express View. and open the DevTools Console The DevTools Console helps you securely store, build, test, and deploy your software.. Then, click the button to see the results of the intersection function. The Data Workflow combines Kris Marrier and Mattie Poquette with their birthdates and insurance premiums, as expected. Ezekiel Chui and Willow Kusko do not share information between tables, so they do not merge or display in the new table.

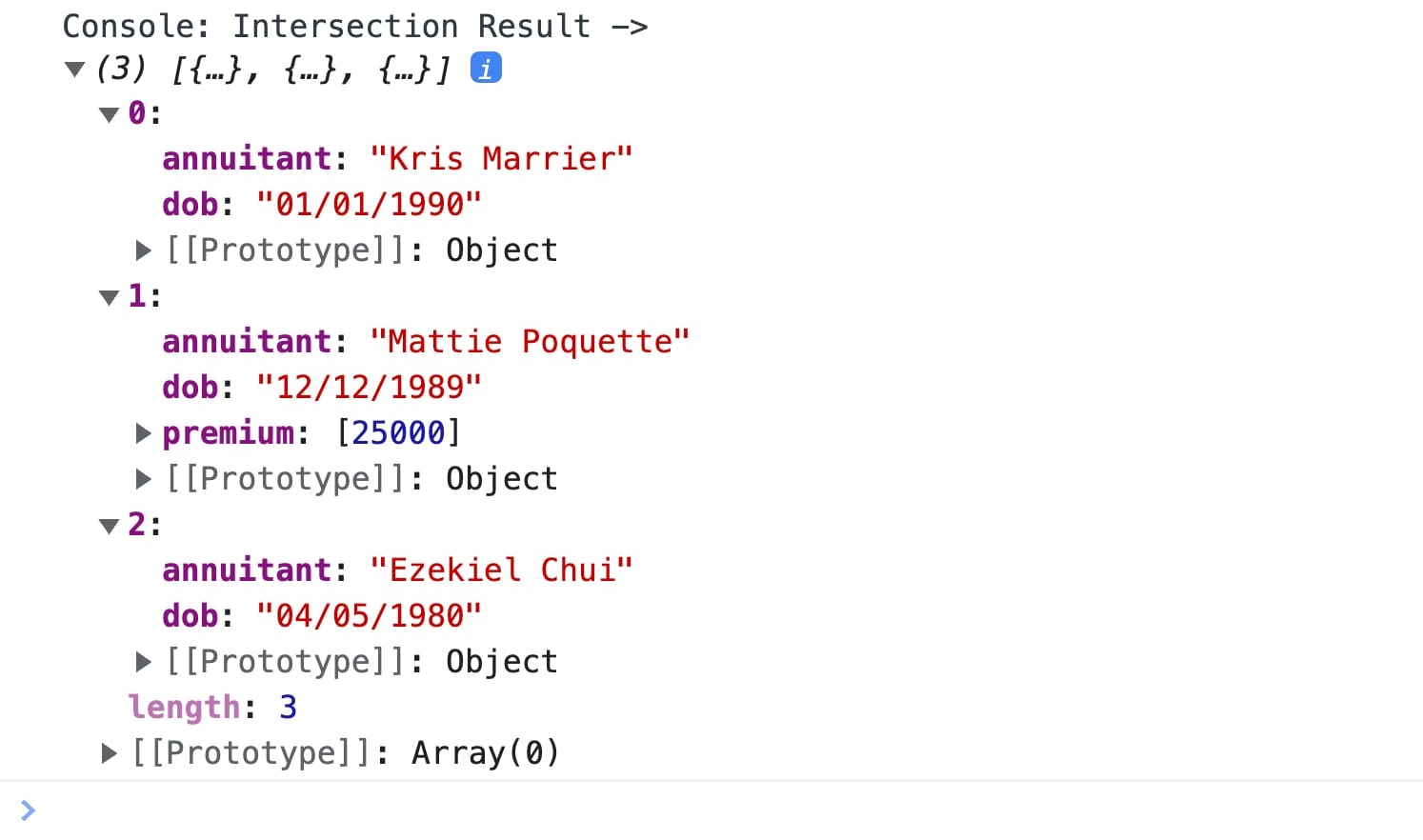

A static image displaying the intersection result in Devtools console.
