Error Node

Prev Next

The Error node redirects a workflow when the Plug-In component of an automated Task node module returns an error. In the Workflow Builder, the Error node attaches to that Task node in the Automated swimlane.

It’s important to note that if your Plug-In component already contains an error trigger, your Error node will not catch the error and redirect.

You’ll find the Error node in the list of nodes to the left of the Workflow Builder.

Error Node Settings

After adding an Error node to your workflow, select it to open a Settings Menu. This menu displays as a blue menu bar, either above or below the node itself. The menu has the following options:

Workflow example showing an editable error node labeled 'errorEvent-1'.

Setting

Description

Edit

Takes you to the Edit Error Event drawer, where you can configure related settings.

Delete (Down Arrow)

Removes the node from the workflow

Edit Error Event Drawer Description

The following settings are available in the Edit Error Event drawer:

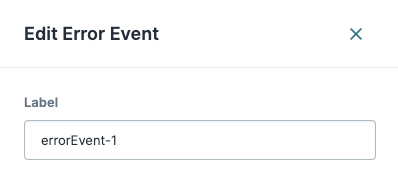

Editing an error event with the label 'errorEvent-1' in a user interface.

Setting

Description

Label

Sets the name of your node. By default, the Label displays as errorEvent-1. The label you enter here is optional and displays below the node on the workflow canvas.

Define your labels by associating them with the node’s role.

Adding an Error Node

In this example, the workflow confirms if an end-user wants an error returned. If your end-user selects No, your workflow proceeds and returns a message retrieved from a transform. If your end-user selects Yes, the Plug-In component in the second Task node simulates an error. Then, your Error node returns the end-user to the first Task node to answer the question again.

This demonstration is for illustrative purposes only and cannot be replicated due to Training environment security.

Configure the Task Nodes

Add three Task nodes to your workflow. The first Task node connects to the Start node. The second Task node uses Plug-In components to simulate an error response. The final Task node returns a message if no error occurs.

  1. Drag and drop two Task nodes into the Authenticated swimlane.

  2. Select a Task node.

  3. Click Edit.

  4. In the Label field, enter Input.

  5. From the Module drop-down, enter or select Enablement Labs: Error Node Use Case-Input.

    This demonstration module asks end-users if they want to generate an error in the next Task node.

  6. Click X (Close).

  7. Select the second Task node.

  8. Click Edit.

  9. In the Label field, enter Result.

  10. From the Module drop-down, enter or select Enablement Labs: Error Node Use Case-Result.

    This demonstration module contains two Plug-In components. One Plug-In component functions as expected, the other is configured incorrectly and triggers the Error node.

  11. Click X (Close).

  12. Drag and drop a third Task node into the Automated swimlane.

  13. Click Edit.

  14. In the Label field, enter Error Check.

  15. From the Module drop-down, enter or select Enablement Labs: Error Node Use Case-Error Check.

    This demonstration module displays if end-users choose not to trigger the error node.

  16. Click X (Close).

  17. Connect the output port (right) of the Start node to the input port (left) of the Input Task node.

  18. Connect the output port (right) of the Input Task node to the input port (left) of the Error Check Task node.

  19. Connect the output port (right) of the Error Check Task node to the input port (left) of the Result Task node.

Configure the Error Node

Next, add an Error node. Your Error node redirects the workflow path if a Plug-In component error occurs.

  1. Drag and drop an Error node onto your Error Check Task node.

  2. Click Edit.

  3. In the Label field, enter Error Event.

  4. Connect the output port (bottom) of the Error node to the input port (left) of the Input Task node.

  5. Click X (Close).

Configure the End Node

  1. Drag and drop an End node into the Authenticated swimlane.

  2. Click Edit.

  3. In the Label field, enter End.

  4. Connect the output port (right) of the Result Task node to the input port (left) of the End End node.

  5. Click Save....

  6. Save your workflow.

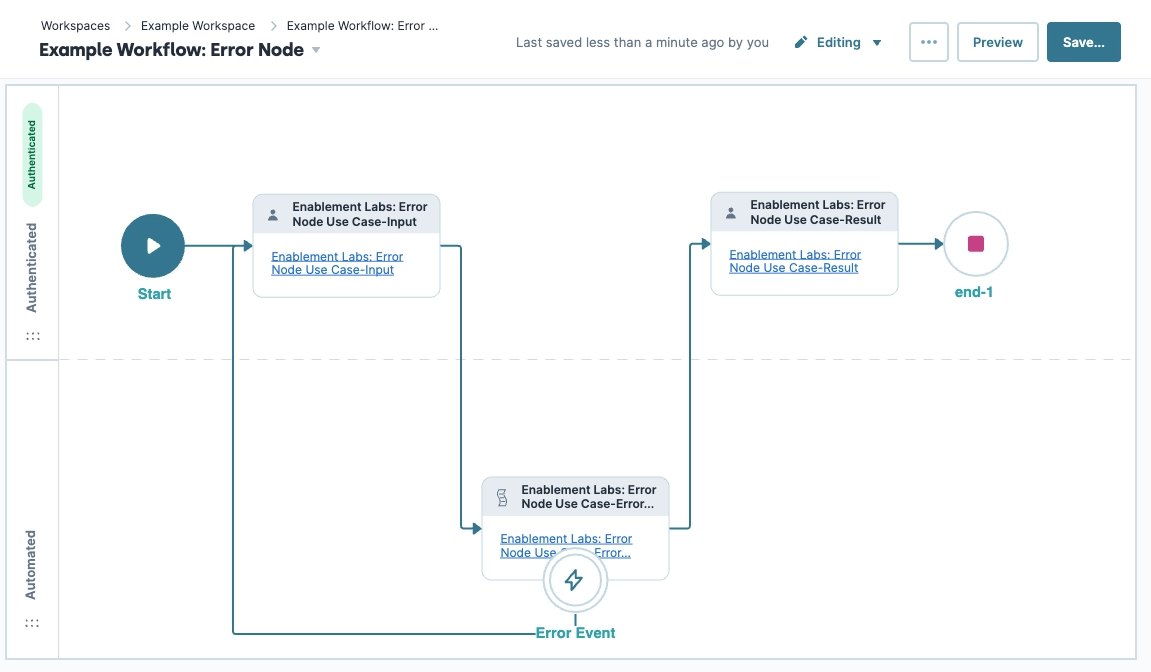

Your completed workflow looks like the following:

Workflow diagram illustrating error node processes and connections in a system.

Preview your workflow. From the Error selection, select Yes. The workflow progresses to the Automated lane, and the Error node triggers, redirecting the end-user to the Error selection task. Click No, and the workflow progresses to the Result task.
