How to: Find the Lowest Value Using the Min By Function

To identify the lowest value in a data set, use the Aggregate operator’s Min By function.

Configuration

Let’s say you have a Data Table component containing a list of dogs and their ages, and wish to determine the youngest dog to ensure they receive additional playtime. You can configure a Data Workflow and an Aggregate operator to return the name of the youngest dog.

These instructions assume you have a new module open, saved, and with a title.

Configure the Data Table Component

Begin by adding a Data Table component to store your sample dog data.

1. In the Module Builder, drag and drop a Data Table component onto your canvas.

2. In the Property ID, enter dtDogs.

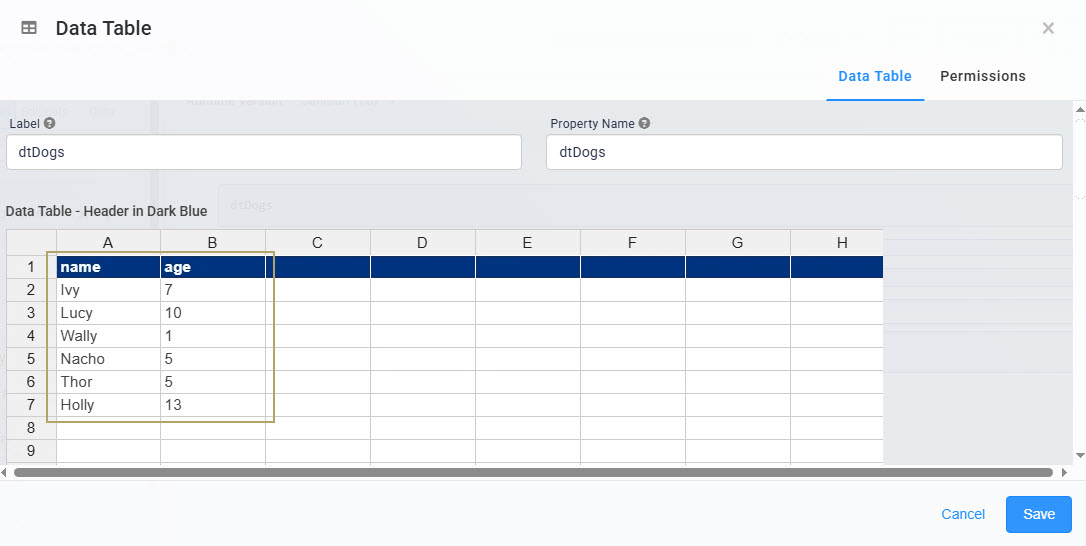

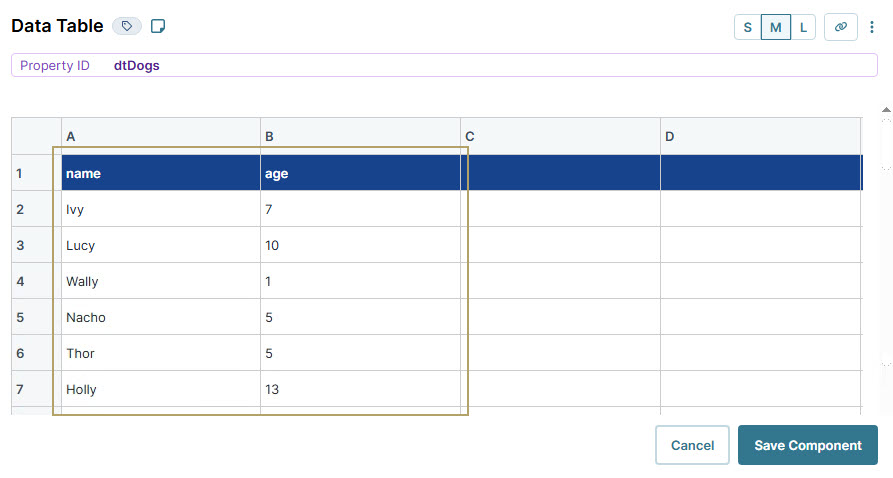

3. In the data table, enter the following:

   name	age
   Ivy	7
   Lucy	10
   Wally	1
   Nacho	5
   Thor	5
   Holly	13



4. Click Save Component.

Configure the Data Workflow Component

Next, configure a Data Workflow component and an Input operator to bring in the data from the Data Table component. Then, add an Aggregate operator to find the youngest dog. Lastly, you’ll add a Console operator to view the results in the DevTools Console.

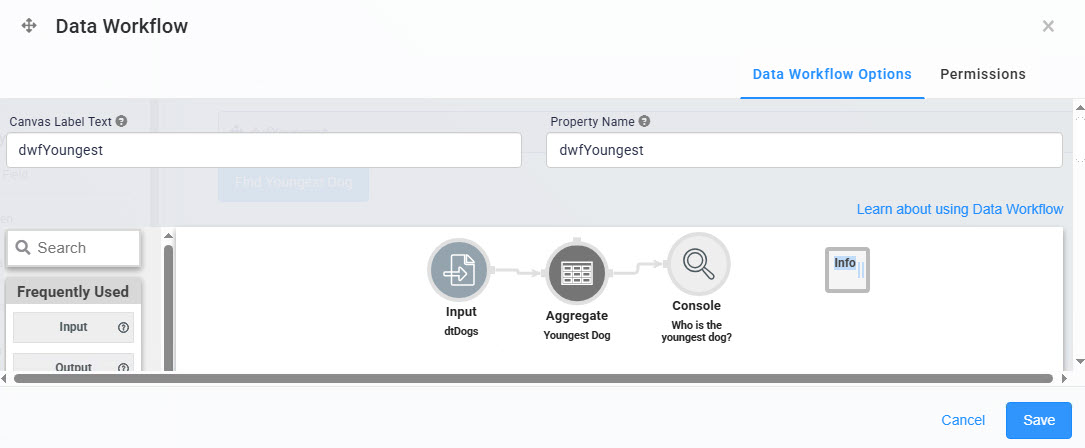

1. Drag and drop a Data Workflow onto your canvas, placing it below your dtDogs Data Table component.

2. In the Property ID and Canvas Label Text fields, enter dwfYoungest.

Configure the Input Operator

1. Drag and drop an Input operator onto your Data Workflow canvas.

2. Configure the operator's Info window as follows:

   Setting	Value
   Category	Input
   Component	dtDogs
   Required	Yes
   Source	Default

Configure the Aggregate Operator

1. Drag and drop an Aggregate operator onto your Data Workflow canvas.

2. Configure the operator's Info window as follows:

   Setting	Value
   Category	Aggregate By
   Label	Youngest Dog
   Aggregation Type	Min By
   Join Group Keys	No
   Group Key
   Value Key	age

3. Connect the output port (right) of the dtDogs Input operator to the input port (left) of the Youngest Dog Aggregate operator.

Configure the Console Operator

1. Drag and drop a Console operator onto your Data Workflow canvas.

2. Configure the operator's Info window as follows:

   Setting	Value
   Category	Console
   Label	Who is the youngest dog?

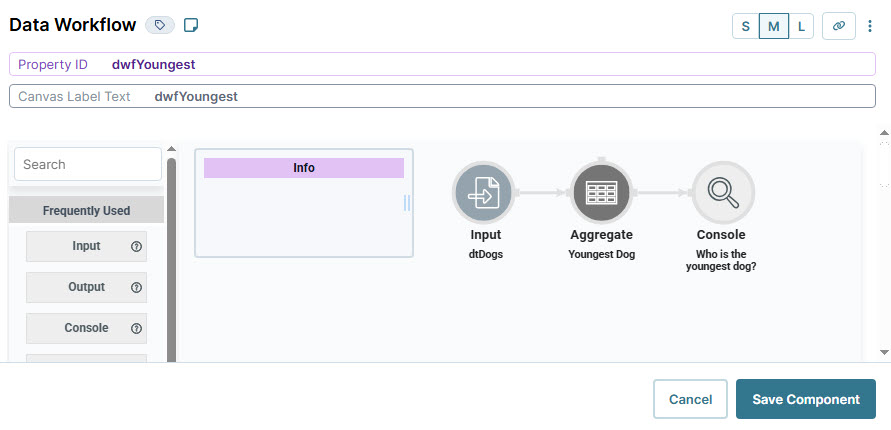

3. Connect the output port (right) of the Youngest Dog Aggregate operator to the input port (left) of the Who is the youngest dog? Console operator.



4. Click Save Component.

Configure the Button Component

Lastly, configure a Button component to trigger your Data Workflow.

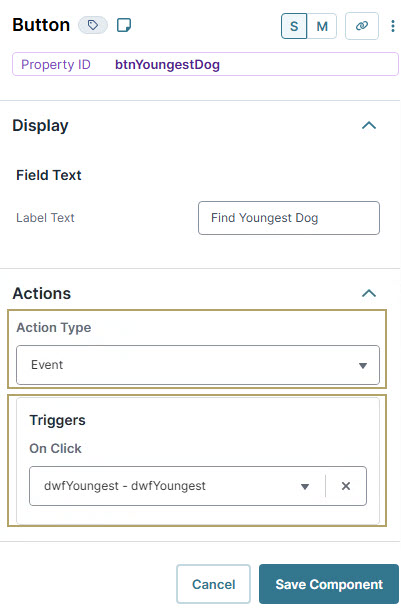

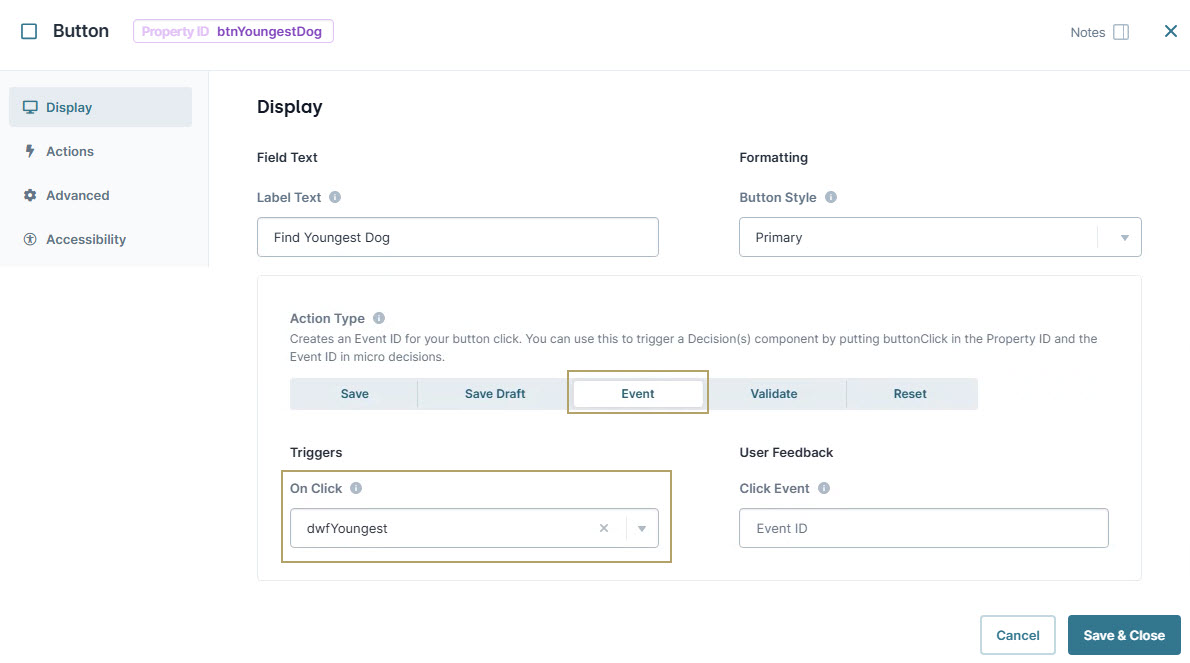

1. Drag and drop a Button component onto your canvas, placing it below your dwfYoungest Data Workflow component.

2. In the Property ID field, enter btnYoungestDog.

3. In the Label Text field, enter Find Youngest Dog.

4. From the Action Type drop-down, select Event.

5. From the On Click drop-down, select dwfYoungest.



6. Click Save Component.

7. Save your module.

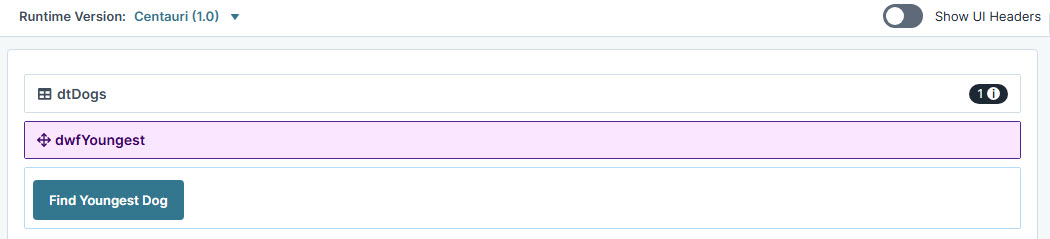

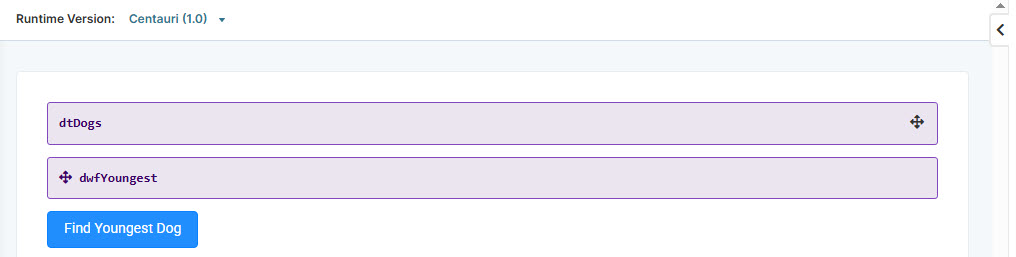

Here's how your completed module looks in the Module Builder:

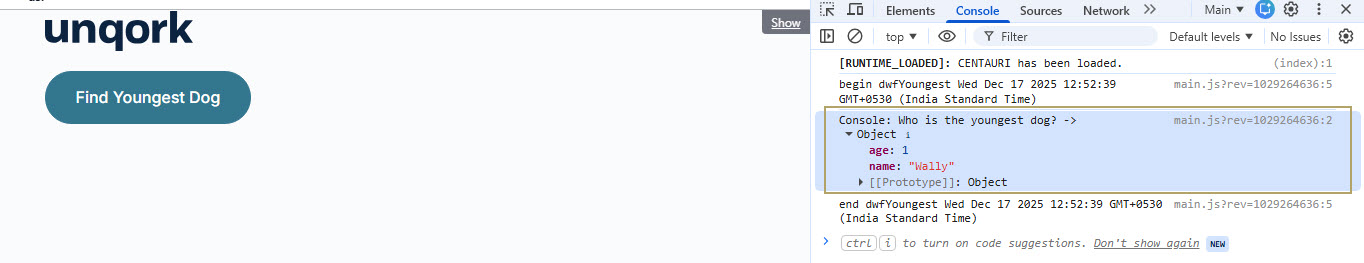

Preview your module in Express View and open the DevTools Console. Click the Find Youngest Dog button, and you'll see the youngest dog from your Who is the youngest dog? Console.
