How to: Add Different Tags to Each Row of an Array

The Merge operator can be used to add two different tags to an array. An array is a data structure that groups elements like values, objects, or other arrays. Each element in an array is indexed by an integer, starting with [0] for the first element, [1] for the second, and so on. These indices give each element a specific position and make it easier to reference values.

Preconfiguration

Before adding tags, you must create a sample array. For example, if a customer orders a product, and you want to display the order’s status, the array should store the order’s basic information. This information could be the cost (in US dollars) and the customer’s name. This basic information can be stored in a Data Table component and processed by a Data Workflow.

These instructions assume that you have an open module saved with a title.

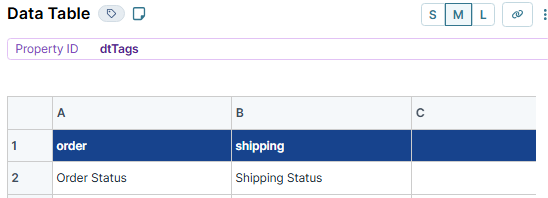

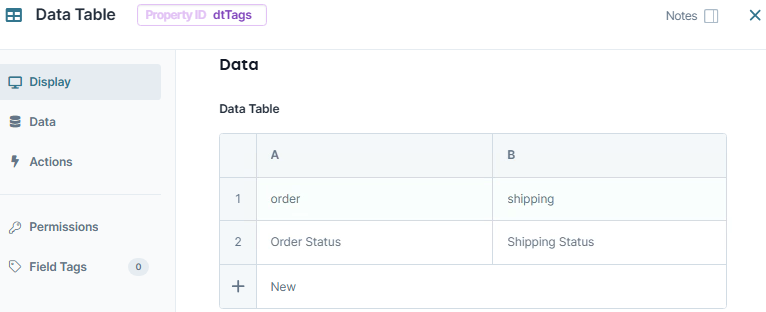

Configure the Data Table Component

First, use a Data Table component to store your sample array.

1. In the Module Builder, drag and drop a Data Table component onto your canvas.

2. In the Property ID and Canvas Label Text fields, enter dtTags.

3. In the data table, enter the following:

   order	shipping
   Order Status	Shipping Status



4. Click Save & Close.

Configure the Hidden Component

Now, store your sample array in a Hidden component.

1. Drag and drop a Hidden component onto your canvas, placing it below the dtTags Data Table component.

2. In the Property ID and Canvas Label Text fields, enter preArray.

3. Click Save & Close.

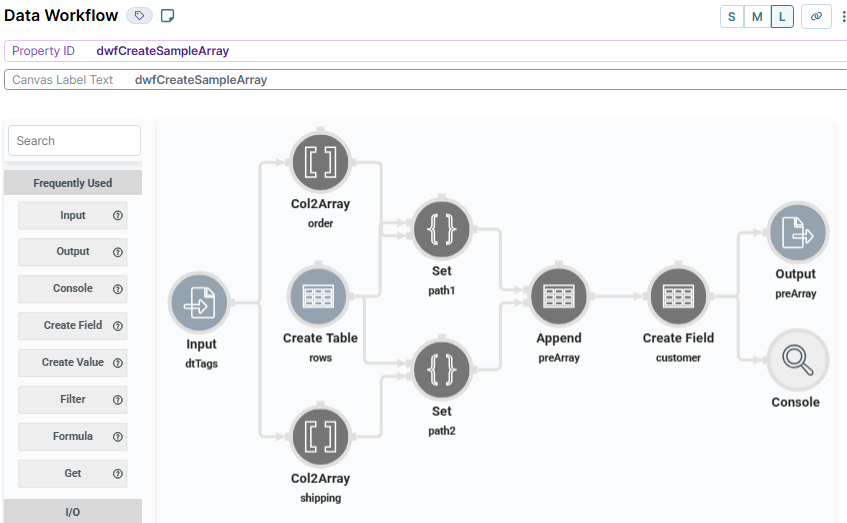

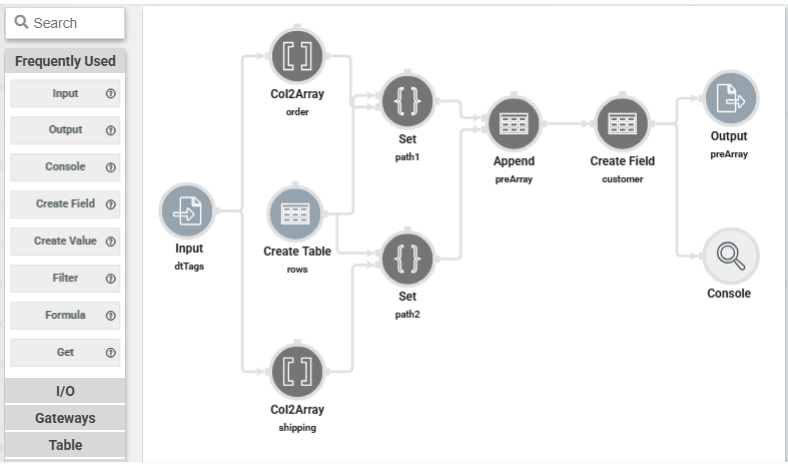

Configure the First Data Workflow Component

This Data Workflow creates your sample array and outputs it to the preArray Hidden component. The Data Workflow then combines your data table with your end-user name and product pricing.

1. Drag and drop a Data Workflow component onto your canvas, placing it above the preArray Hidden component.

2. In the Canvas Label Text and Property Name fields, enter dwfCreateSampleArray.

Configure the Input Operator

1. Drag and drop an Input operator onto your Data Workflow canvas.

2. Configure the operator's Info window as follows:

   Setting	Value
   Category	Input
   Component	dtTags
   Required	Yes
   Source	Default

Configure the First Col2Array Operator

1. Drag and drop a Col2Array operator onto your Data Workflow canvas.

2. Configure the first Col2Array operator’s Info window as follows:

   Setting	Value
   Category	Col2Array
   Label	order
   Drop Empty	Yes
   Path	order
   Default Value

3. Connect the output port (right) of the dtTags Input operator to the input port (left) of the Order Col2Array operator.

Configure the Second Col2Array Operator

1. Drag and drop another Col2Array operator onto your Data Workflow canvas.

2. Configure the Col2Array operator’s Info window as follows:

   Setting	Value
   category	Col2Array
   label	shipping
   Drop Empty	Yes
   Path	shipping
   Default Value

3. Connect the output port (right) of the dtTags Input operator to the input port (left) of the shipping Col2Array operator.

Configure the Create Table Operator

1. Drag and drop a Create Table operator onto your Data Workflow canvas.

2. Configure the operator’s Info window as follows:

   Setting	Value
   Category	Create Table
   Label	rows
   Create Index	No
   Number of Rows	1

Configure the First Set Operator

1. Drag and drop a Set operator onto your Data Workflow canvas.

2. Configure the operator’s Info window as follows:

   Setting	Value
   Category	Set
   Label	path1
   Path	[0].tags
   Value

3. Connect the output port (right) of the rows Create Table operator to the upper input port (left) of the path1 Set operator.

4. Connect the output port (right) of the order Col2Array operator to the lower input port (left) of the path1 Set operator.

Configure the Second Set Operator

1. Drag and drop another Set operator onto your Data Workflow canvas.

2. Configure the operator’s Info window as follows:

   Setting	Value
   Category	Set
   Label	path2
   Path	[0].tags
   Value

3. Connect the output port (right) of the rows Create Table operator to the upper input port (left) of the path2 Set operator.

4. Connect the output port (right) of the shipping Col2Array operator to the lower input port (left) of the path2 Set operator.

Configure the Append Operator

1. Drag and drop an Append operator onto your Data Workflow canvas.

2. Configure the operator’s Info window as follows:

   Setting	Value
   Category	Append
   Label	preArray

3. Connect the output port (right) of the path1 Set operator to the upper input port (left) of the preArray Append operator.

4. Connect the output port (right) of the path2 Set operator to the lower input port (left) of the preArray Append operator.

Configure the Create Field Operator

1. Drag and drop a Create Field operator onto your Data Workflow canvas.

2. Configure the operator’s Info window as follows:

   Setting	Value
   Category	Create Field
   Label	customer
   Do Not Sanitize Formula	(unchecked)
   Preserve Argument Type	(unchecked)
   Field 1	firstName = "Willow"
   Field 2	lastName = "Kusko"
   Field 3	price = "$16.99"
   Field 4
   Field 5

3. Connect the output port (right) of the preArray Append operator to the input port (left) of the customer Create Field operator.

Configure the Output Operator

1. Drag and drop an Output operator onto your Data Workflow canvas.

2. Configure the operator’s Info window as follows:

   Setting	Value
   Category	Output
   Component	preArray
   Action	value

3. Connect the output port (right) of the customer Create Field operator to the input port (left) of the preArray Output operator.



4. Click Save.

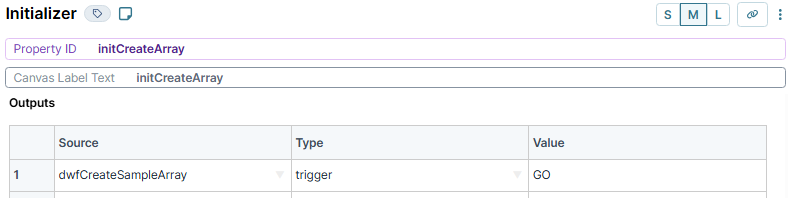

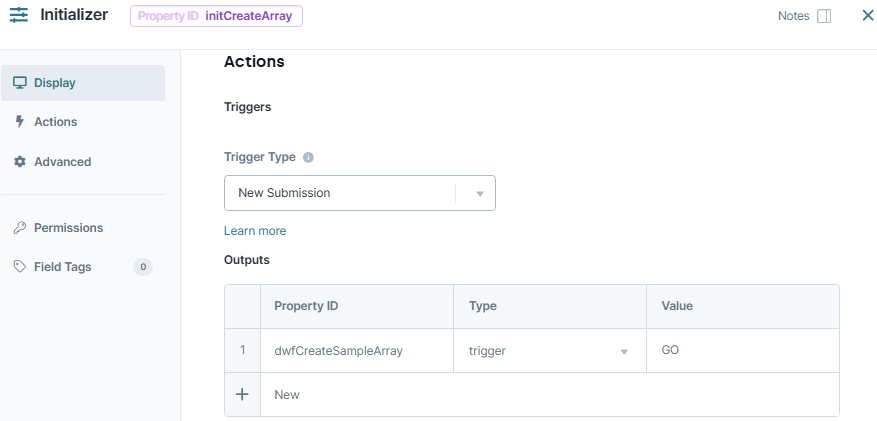

Configure the Initializer Component

Now, configure an Initializer component to trigger your Data Workflow.

1. Drag and drop an Initializer component onto your canvas, placing it above the dtTags Data Table component.

2. In the Property ID and Canvas Label Text fields, enter initCreateArray.

3. From the Trigger Type drop-down, select New Submission.

4. In the Outputs table, set the following:

   Property ID	Type	Value
   dwfCreateSampleArray	trigger	GO



5. Click Save & Close.

Configuration

Next, you’ll add order and shipping status information as tags. In this example, the tags include Order Status, Shipping Status, Pending, Processing, and Complete. A second Data Workflow, with a Merge operator, creates and combines these tags into the two rows of the data table.

Configure Two Text Field Components

Next, configure two Text Field components so your end-user can enter order and shipping tags into the array.

1. Drag and drop two Text Field components onto your canvas, placing them below the preArray Hidden component.

2. Enter the Property ID and Label Text as follows:

   #	Property ID	Label Text
   1	tagOrder	Order Status
   2	tagShipping	Shipping Status

3. Click Save & Close.

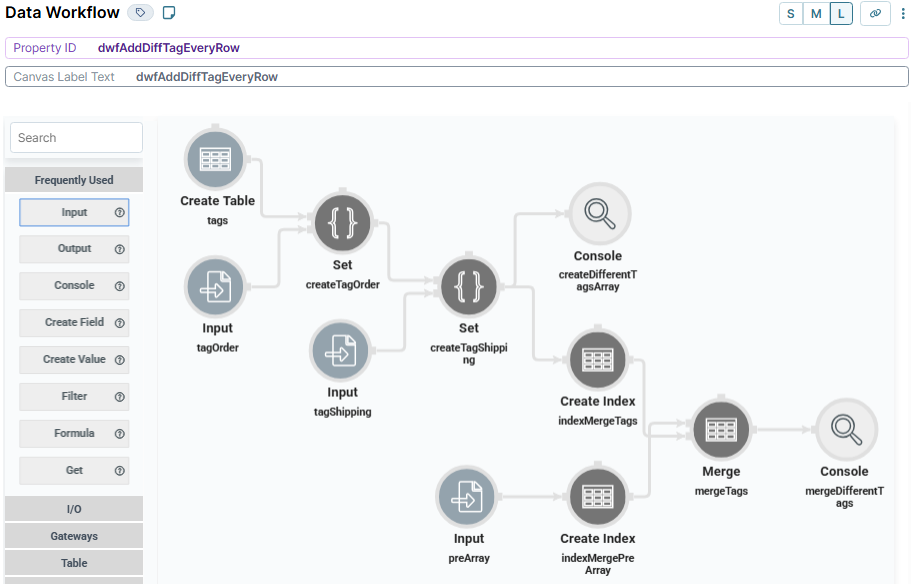

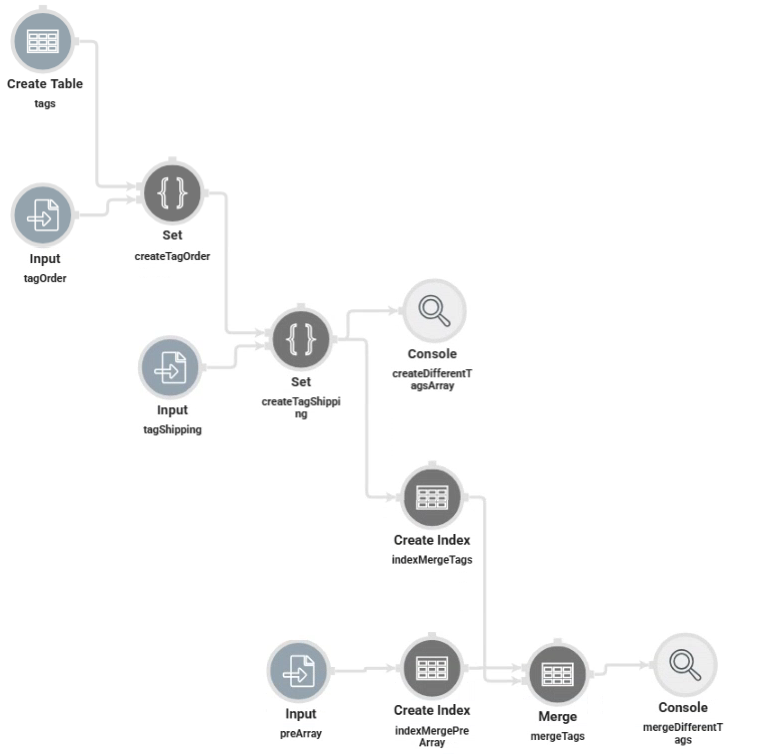

Configure the Second Data Workflow Component

This Data Workflow lets your end-user create any tags they choose by entering them in the tagOrder and tagShipping Text Field components. The Data Workflow merges those tags into the two rows of the dtTags Data Table component. Meaning that one tag populates with the customer's order status and the other with the shipping status. In this example, you’ll use the Merge operator’s Inner feature and set index as the Merge Key.

1. Drag and drop a Data Workflow component onto your canvas, placing it below the tagShipping Text Field component.

2. In the Canvas Label Text and Property Name fields, enter dwfAddDiffTagEveryRow.

Configure the First Input Operator

1. Drag and drop an Input operator onto your Data Workflow canvas.

2. Configure the operator's Info window as follows:

   Setting	Value
   Category	Input
   Component	tagOrder
   Required	Yes
   Source	Default

Configure the Second Input Operator

1. Drag and drop another Input operator onto your Data Workflow canvas.

2. Configure the operator's Info window as follows:

   Setting	Value
   Category	Input
   Component	tagShipping
   Required	Yes
   Source	Default

Configure the Third Input Operator

1. Drag and drop another Input operator onto your Data Workflow canvas.

2. Configure the operator's Info window as follows:

   Setting	Value
   Category	Input
   Component	preArray
   Required	Yes
   Source	Default

Configure the Create Table Operator

1. Drag and drop a Create Table operator onto your Data Workflow canvas.

2. Configure the operator’s Info window as follows:

   Setting	Value
   Category	Create Table
   Label	tags
   Create Index	No
   Number of Rows	0

Configure the First Set Operator

1. Drag and drop a Set operator onto your Data Workflow canvas.

2. Configure the operator’s Info window as follows:

   Setting	Value
   Category	Set
   Label	createTagOrder
   Path	[0].tags[0]
   Value

3. Connect the output port (right) of the tags Create Table operator to the upper input port (left) of the createTagOrder Set operator.

4. Connect the output port (right) of the tagOrder Input operator to the lower input port (left) of the createTagOrder Set operator.

Configure the Second Set Operator

1. Drag and drop another Set operator onto your Data Workflow canvas.

2. Configure the operator’s Info window as follows:

   Setting	Value
   Category	Set
   Label	createTagShipping
   Path	[0].tags[0]
   Value

3. Connect the output port (right) of the createTagOrder Set operator to the upper input port (left) of the createTagShipping Set operator.

4. Connect the output port (right) of the tagShipping Input operator to the lower input port (left) of the createTagShipping Set operator.

Configure the First Create Index Operator

1. Drag and drop a Create Index operator onto your Data Workflow canvas.

2. Configure the operator’s Info window as follows:

   Setting	Value
   Category	Create Index
   Label	indexMergeTags
   Index Name	index
   Starting Index	0
   Keys

3. Connect the output port (right) of the createTagShipping Set operator to the input port (left) of the indexMergeTags Create Index operator.

Configure the Second Create Index Operator

1. Drag and drop another Create Index operator onto your Data Workflow canvas.

2. Configure the operator’s Info window as follows:

   Setting	Value
   Category	Create Index
   Label	indexMergePreArray
   Index Name	index
   Starting Index	0
   Keys

3. Connect the output port (right) of the preArray Input operator to the input port (left) of the indexMergePreArray Create Index operator.

Configure the Merge Operator

1. Drag and drop a Merge operator onto your Data Workflow canvas.

2. Configure the operator’s Info window as follows:

   Setting	Value
   Category	Merge
   Label	mergeTags
   Merge Type	Inner
   Keep Flag	False
   Renaming	Push
   Rows to Keep	First
   Merge Key	index

3. Connect the output port (right) of the indexMergePreArray Create Index operator to the upper input port (left) of the mergeTags Merge operator.

4. Connect the output port (right) of the indexMergeTags Create Index operator to the lower input port (left) of the mergeTags Merge operator.

Configure the First Console Operator

Lastly, add two Console operators to watch your Data Workflow. The first monitors the tags before the mergeTags Merge operator. The second monitors the tags after the mergeTags Merge operator.

1. Drag and drop a Console operator onto your Data Workflow canvas.

2. Configure the operator’s Info window as follows:

   Setting	Value
   Category	Console
   Label	createDifferentTagsArray

3. Connect the output port (right) of the createTagShipping Set operator to the input port (left) of the createDifferentTagsArray Console operator.

Configure the Second Console Operator

1. Drag and drop another Console operator onto your Data Workflow canvas.

2. Configure the operator’s Info window as follows:

   Setting	Value
   Category	Console
   Label	mergeDifferentTags

3. Connect the output port (right) of the mergeTags Merge operator to the input port (left) of the mergeDifferentTags Console operator.



4. Click Save.

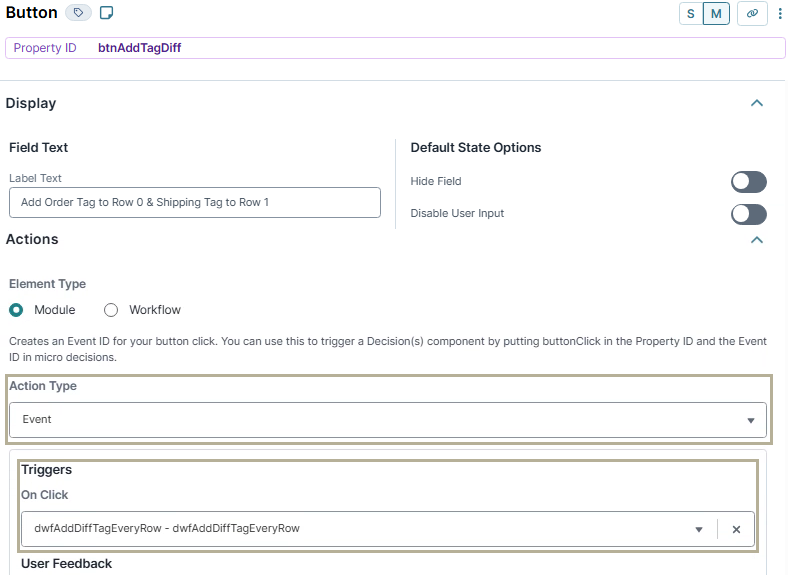

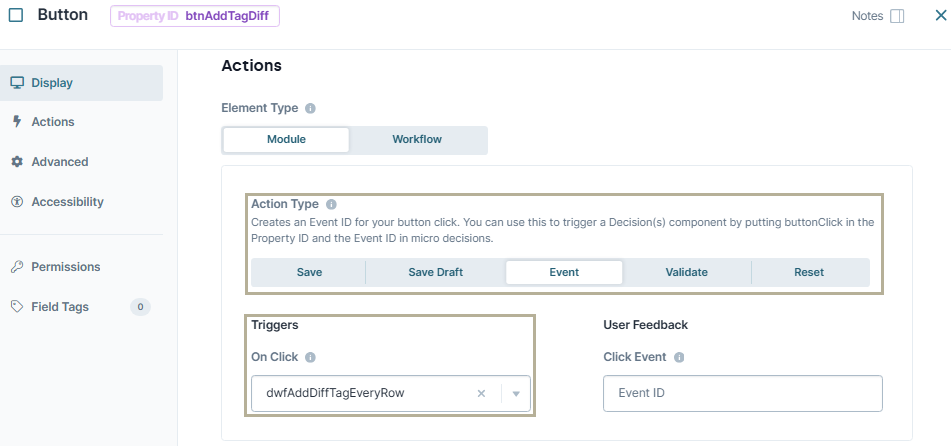

Configure the Button Component

Lastly, configure a Button component to trigger your second Data Workflow.

1. Drag and drop a Button component onto your canvas, placing it above your dwfAddDiffTagEveryRow Data Workflow component.

2. In the Property ID field, enter btnAddTagDiff.

3. In the Label Text field, enter Add Order Tag to Row 0 & Shipping Tag to Row 1.

4. Set the Action Type as Event.

5. From the On Click drop-down, select dwfAddDiffTagEveryRow.



6. Click Save & Close.

7. Save your module.

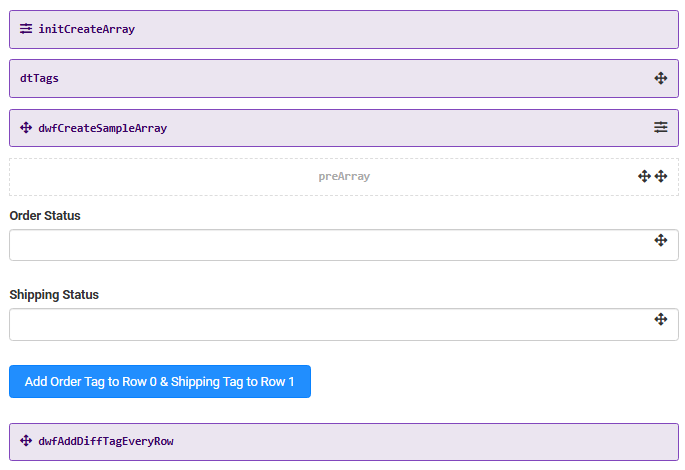

Here's how your completed example looks in the Module Builder:

Preview your module in Express View and open the DevTools Console. In the Order Status field, enter Complete. In the Shipping Status field, enter Processing. Click the Add Order Tag to Row 0 & Shipping Tag to Row 1 button to see the result:
