How to: Configure Integration Error Handling

Configure the Button Component

Begin by adding a Button component to trigger your Plug-In component.

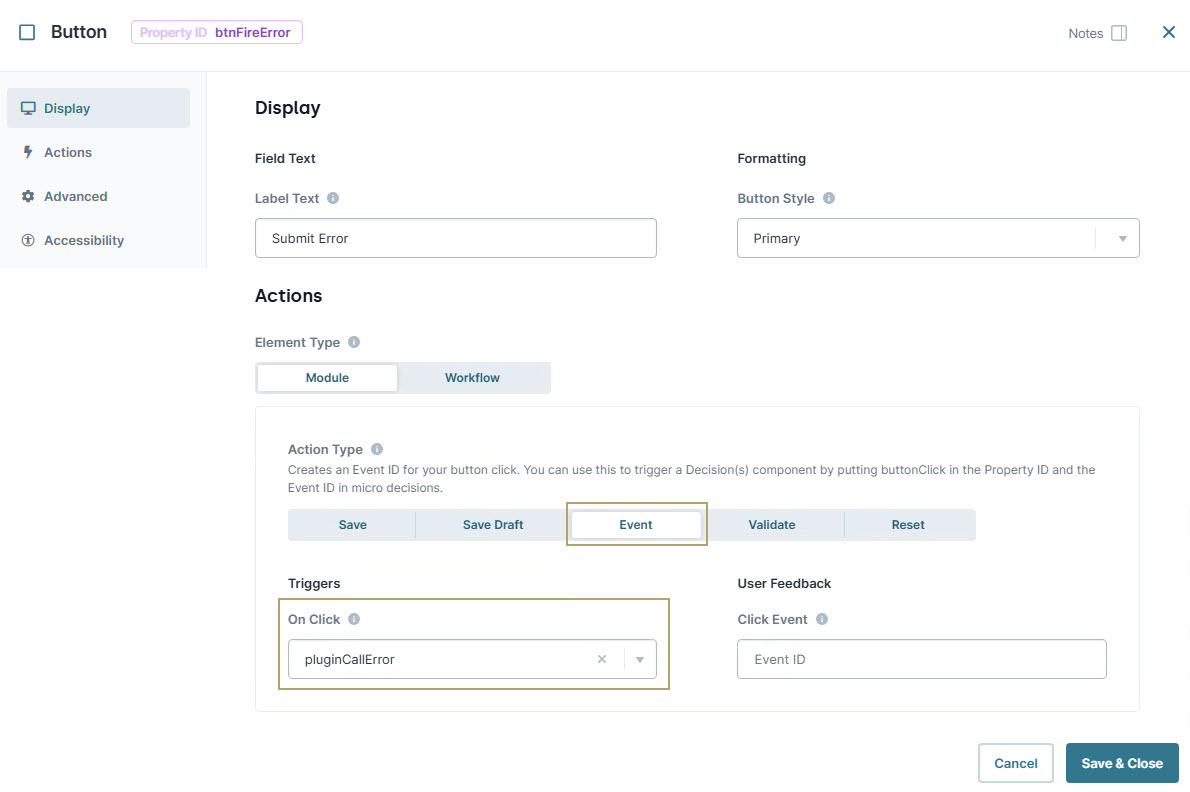

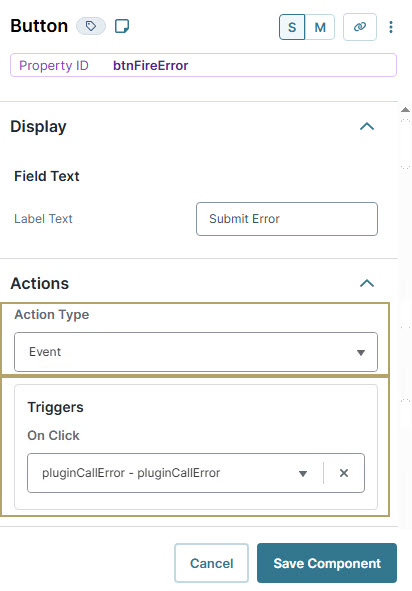

1. In the Module Builder, drag and drop a Button component onto your canvas.

2. In the Property ID field, enter btnFireError.

3. In the Label Text field, enter Submit Error.

4. Set the Action Type as Event.

5. From the On Click drop-down, select pluginCallError.



6. Click Save & Close.

Configure the Plug-In Component

Next, configure a Plug-In component to execute a broken API call. Any remote execution that ensures a broken API call is beneficial, as it helps to examine different error codes and messages that might arise. So, you’ll use the Combine PDFs internal API call. You’ll retain the Data Source URL as the default for this configuration, which guarantees that the API call lacks sufficient information to operate effectively. Subsequently, the Plug-In component will send its Error Trigger to initiate the Data Workflow.

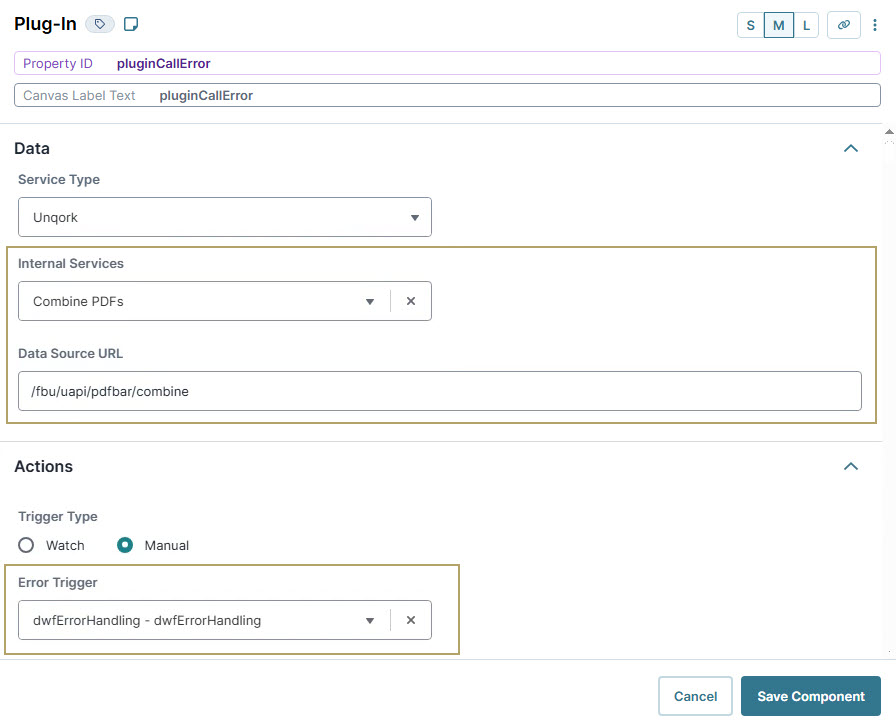

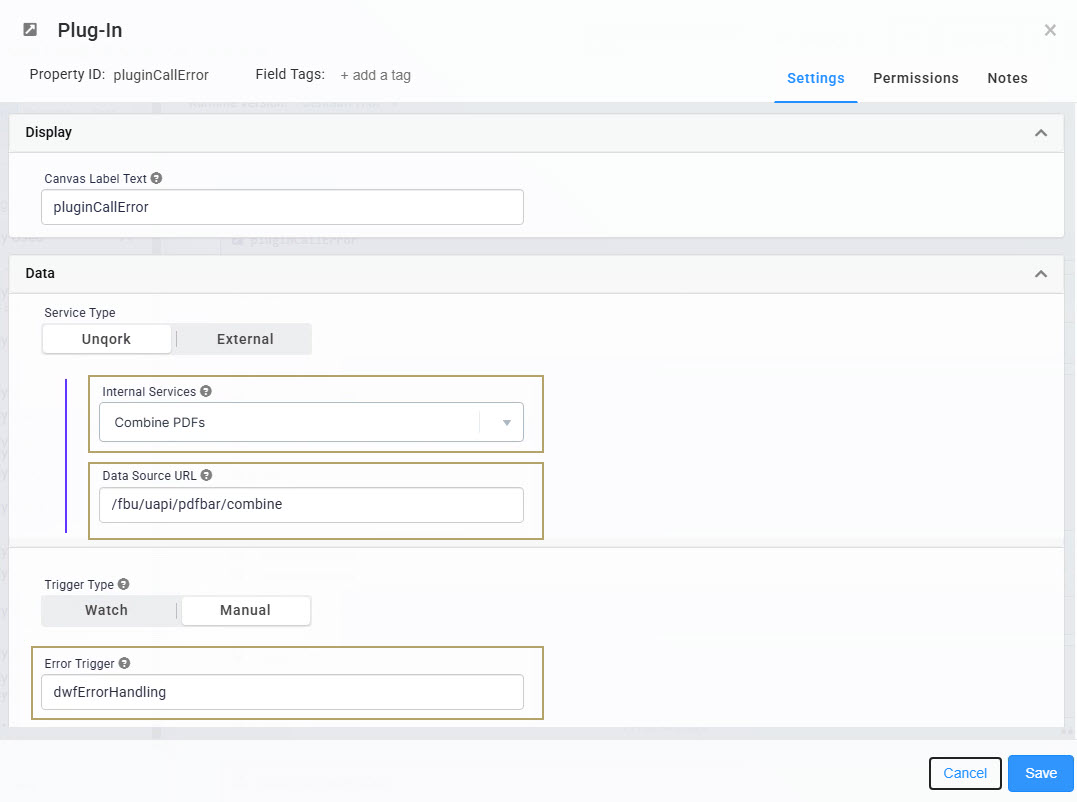

1. Drag and drop a Plug-In component onto your canvas, placing it below the Submit Error Button component.

2. In the Property ID and Canvas Label Text fields, enter pluginCallError.

3. In the Error Trigger field, enter dwfErrorHandling.

4. From the Internal Services drop-down, select Combine PDFs. The Data Source URL automatically populates with /fbu/uapi/pdfbar/combine. Don’t make any changes to the URL.

   The Plug-In component does not fire correctly if you do not change the autopopulated Data Source URL.



5. Click Save.

Configure the Hidden Components

Next, configure two Hidden components to store the error response codes and error messages for the respective error codes.

1. Drag and drop two Hidden components onto your canvas, placing them below the pluginCallError Plug-In component.

2. In the Property ID and Canvas Label Text fields, enter as follows:

   Property ID	Canvas Label Text
   errorCode	errorCode
   errorMessage	errorMessage

3. Save each component.

Configure the Decisions Component

Now, configure the Decisions component to display the error messages based on the error response code. The error codes and messages are customized to ensure you consider every potential error.

1. Drag and drop a Decisions component onto your canvas, placing it below your Hidden components.

2. In the Property ID and Canvas Label Text fields, enter ruleErrorPopMessage.

3. In the Inputs table, enter the following:

   Property ID	Type	Required
   errorCode	exact	(checked)

4. In the Outputs table, enter the following:

   Property ID	Type
   errorMessage	popError

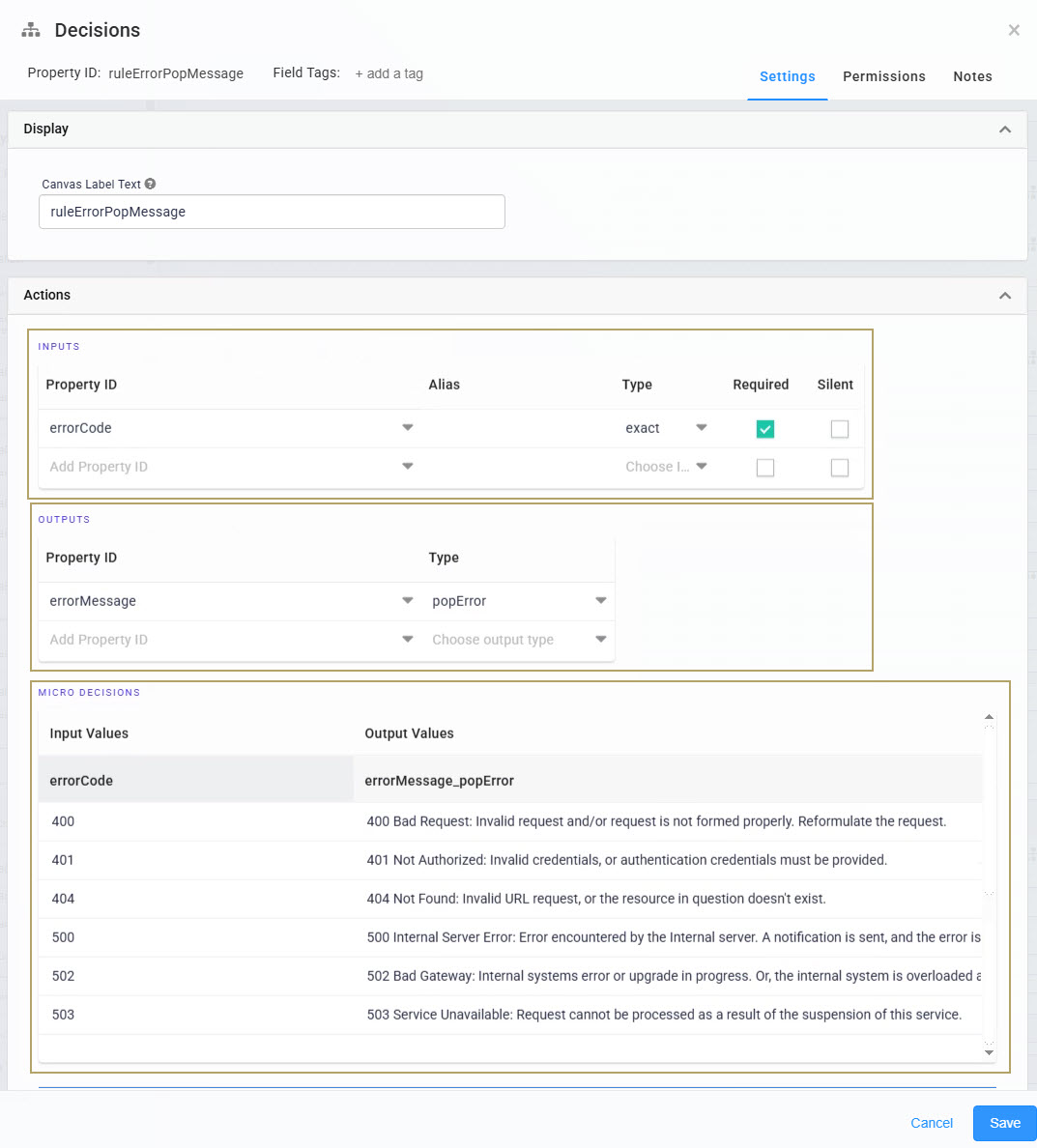

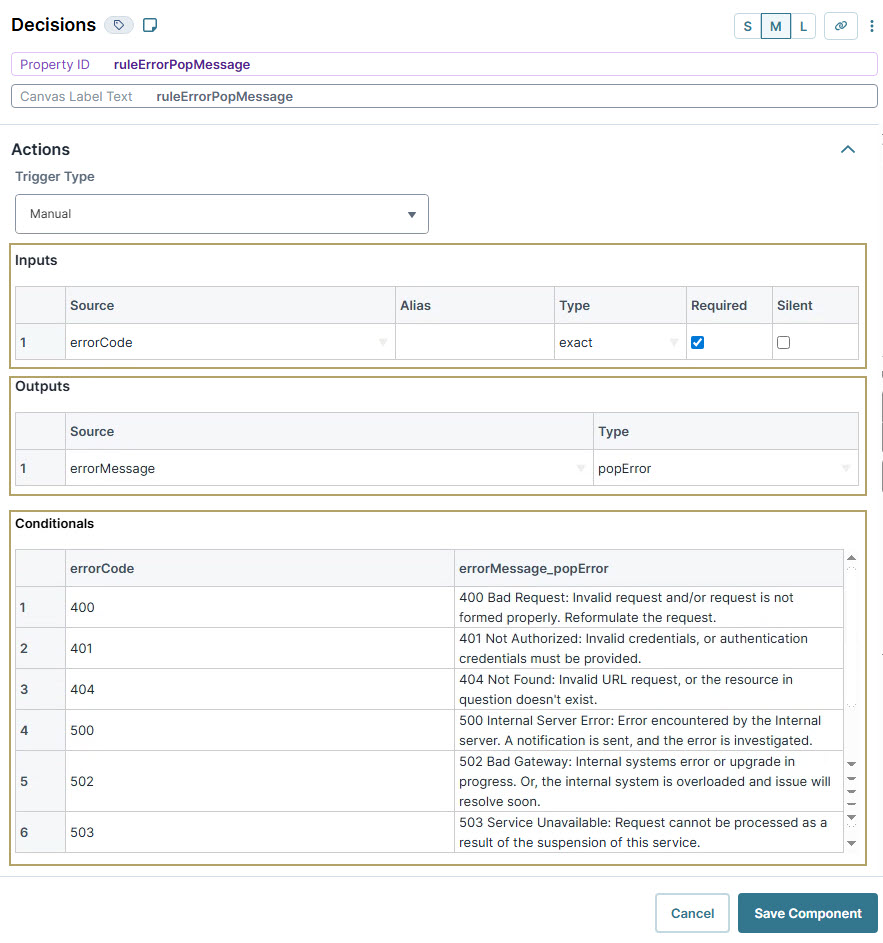

5. In the Micro Decisions table, enter the following:

   Input Values	Output Values
   errorCode	errorMessage_popError
   400	400 Bad Request: Invalid request and/or request is not formed properly. Reformulate the request.
   401	401 Not Authorized: Invalid credentials, or authentication credentials must be provided.
   404	404 Not Found: Invalid URL request, or the resource in question doesn't exist.
   500	500 Internal Server Error: Error encountered by the Internal server. A notification is sent, and the error is investigated.
   502	502 Bad Gateway: Internal systems error or upgrade in progress. Or, the internal system is overloaded, and the issue will resolve soon.
   503	503 Service Unavailable: The request cannot be processed as a result of the suspension of this service.



6. Click Save.

Configure the Data Workflow Component

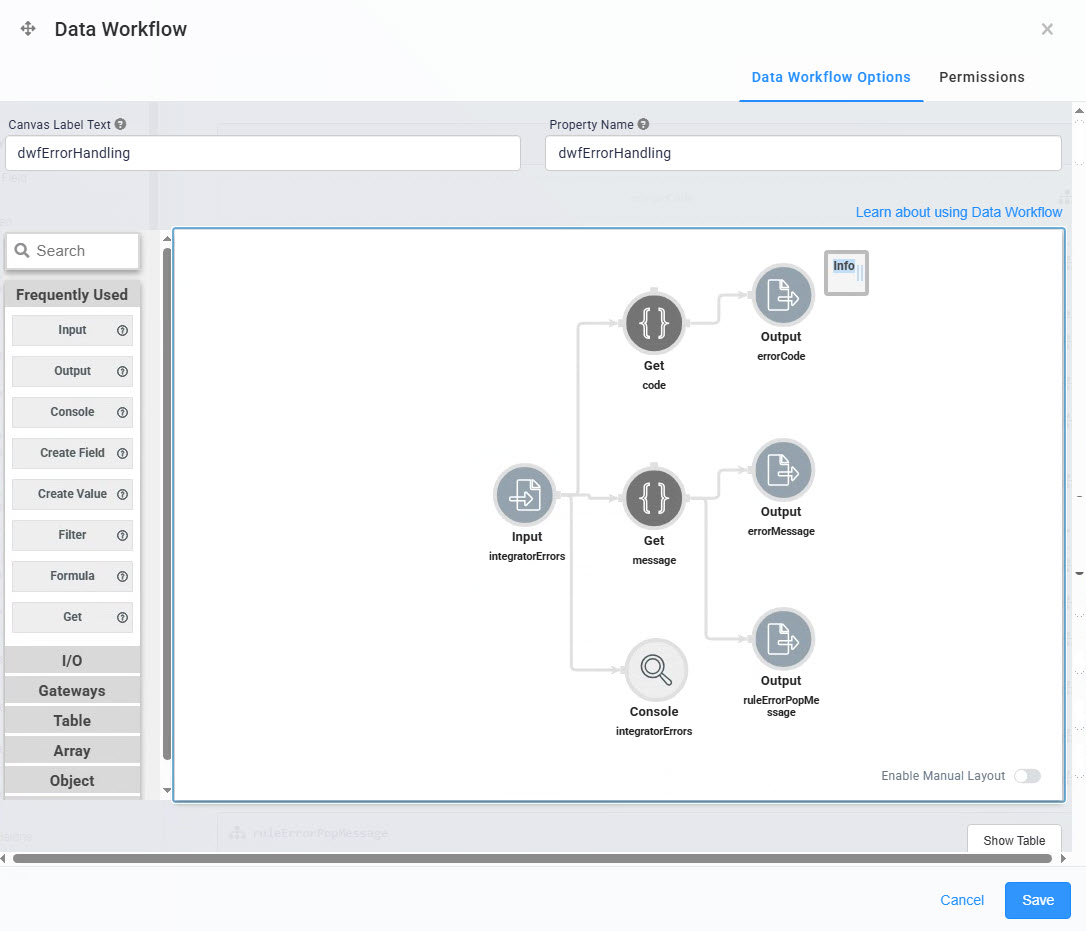

Now, configure the Data Workflow. The unsuccessful Plug-In component triggers the error code and runs the Data Workflow. The Data Workflow outputs the response code and message for that specific error.

1. Drag and drop a Data Workflow component onto your canvas, placing it between your pluginCallError Plug-In and Hidden components.

2. In the Canvas Label Text and Property Name fields, enter dwfErrorHandling.

Configure the Input Operator

Start by adding an Input operator. The Input operator references the input integratorErrors. However, note that integratorErrors is located outside of the data object, so it cannot be selected from the operator's Component drop-down menu. You need to manually input the integratorErrors since it is not included in your configuration.

1. Drag and drop an Input operator onto your Data Workflow canvas.

2. Configure the operator's Info window as follows:

   Setting	Value
   Category	Input
   Component
   Required	Yes
   Source	Default

3. In the Component field of the operator’s Info window, double-click and enter integratorErrors.

4. Press Enter (Return) on your keyboard.

Configure the code Get Operator

Next, configure a Get operator to retrieve the custom message for the error.

1. Drag and drop a Get operator onto your Data Workflow canvas.

2. Configure the operator's Info window as follows:

   Setting	Value
   Category	Input
   Label	code
   Path	pluginCallError.code

3. Connect the output port (right) of the integratorErrors Input operator to the input port (left) of the message Get operator.

Configure the errorCode Output Operator

Now, configure an Output operator to output the response code of the error to your errorCode Hidden component.

1. Drag and drop an Output operator onto your Data Workflow canvas.

2. Configure the operator's Info window as follows:

   Setting	Value
   Category	Output
   Component	errorCode
   Action	value

3. Connect the output port (right) of the code Get operator to the input port (left) of the errorCode Output operator.

Configure the message Get Operator

Next, configure a Get operator to retrieve the custom message for the error.

1. Drag and drop a Get operator onto your Data Workflow canvas.

2. Configure the operator's Info window as follows:

   Setting	Value
   Category	Input
   Label	message
   Path	pluginCallError.message

3. Connect the output port (right) of the integratorErrors Input operator to the input port (left) of the message Get operator.

Configure the errorMessage Output Operator

Next, configure another Output operator to output the error message to your errorMessage Hidden component.

1. Drag and drop an Output operator onto your Data Workflow canvas.

2. Configure the operator's Info window as follows:

   Setting	Value
   Category	Output
   Component	errorMessage
   Action	value

3. Connect the output port (right) of the message Get operator to the input port (left) of the errorMessage Output operator.

Configure the ruleErrorPopMessage Output Operator

Configure another Output operator that triggers your Decisions component and displays the error message.

1. Drag and drop an Output operator onto your Data Workflow canvas.

2. Configure the operator's Info window as follows:

   Setting	Value
   Category	Output
   Component	ruleErrorPopMessage
   Action	trigger

3. Connect the output port (right) of the message Get operator to the input port (left) of the ruleErrorPopMessage Output operator.

Configure the Console Operator

Lastly, configure a Console operator and connect it to your integratorErrors Input operator. The integratorErrors object for your error displays, emphasizing the importance of your custom error messages.

1. Drag and drop a Console operator onto your Data Workflow canvas.

2. Configure the operator's Info window as follows:

   Setting	Value
   Category	Console
   Label	integratorErrors

3. Connect the output port (right) of the integratorErrors Input operator to the input port (left) of the integratorErrors Console operator.



4. Click Save.

5. Save your module.

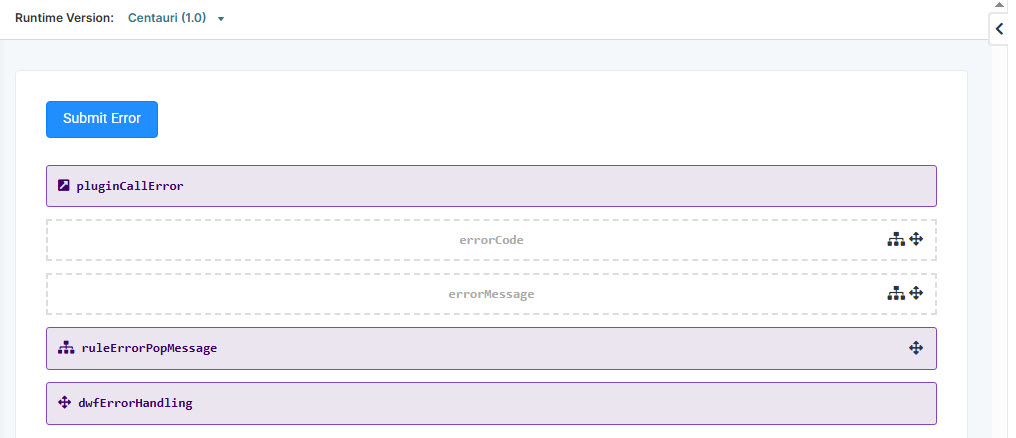

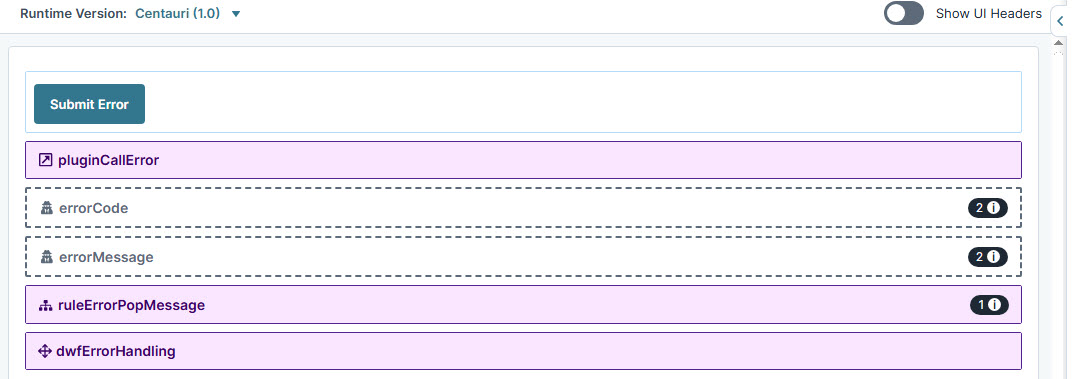

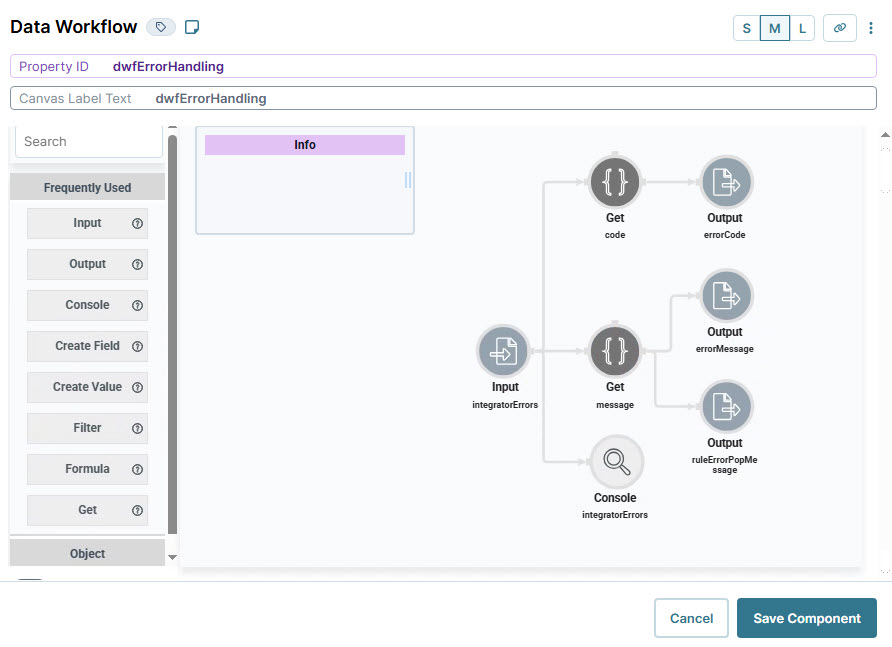

Here’s how your completed module looks in the Module Builder:
