How to: Consume a DocuSign Connect Webhook

Overview

For this how-to guide, you need to configure an application to consume a DocuSign Connect webhook. This example consists of 3 items:

• A Submission Schema module that creates submissions using a webhook. This module is already built-out here: https://training.unqork.io/#/form/5f134166c96ba3020cfa4c73/edit. This module creates webhook submissions.

• A Listener module that connects to the DocuSign Connect webhook.

• A DocuSign demo developer account with valid API credentials.

You'll build the Listener modules in this how-to guide.

To learn more about integrating DocuSign at Unqork, search DocuSign Module Integration Template in our In-Product Help.

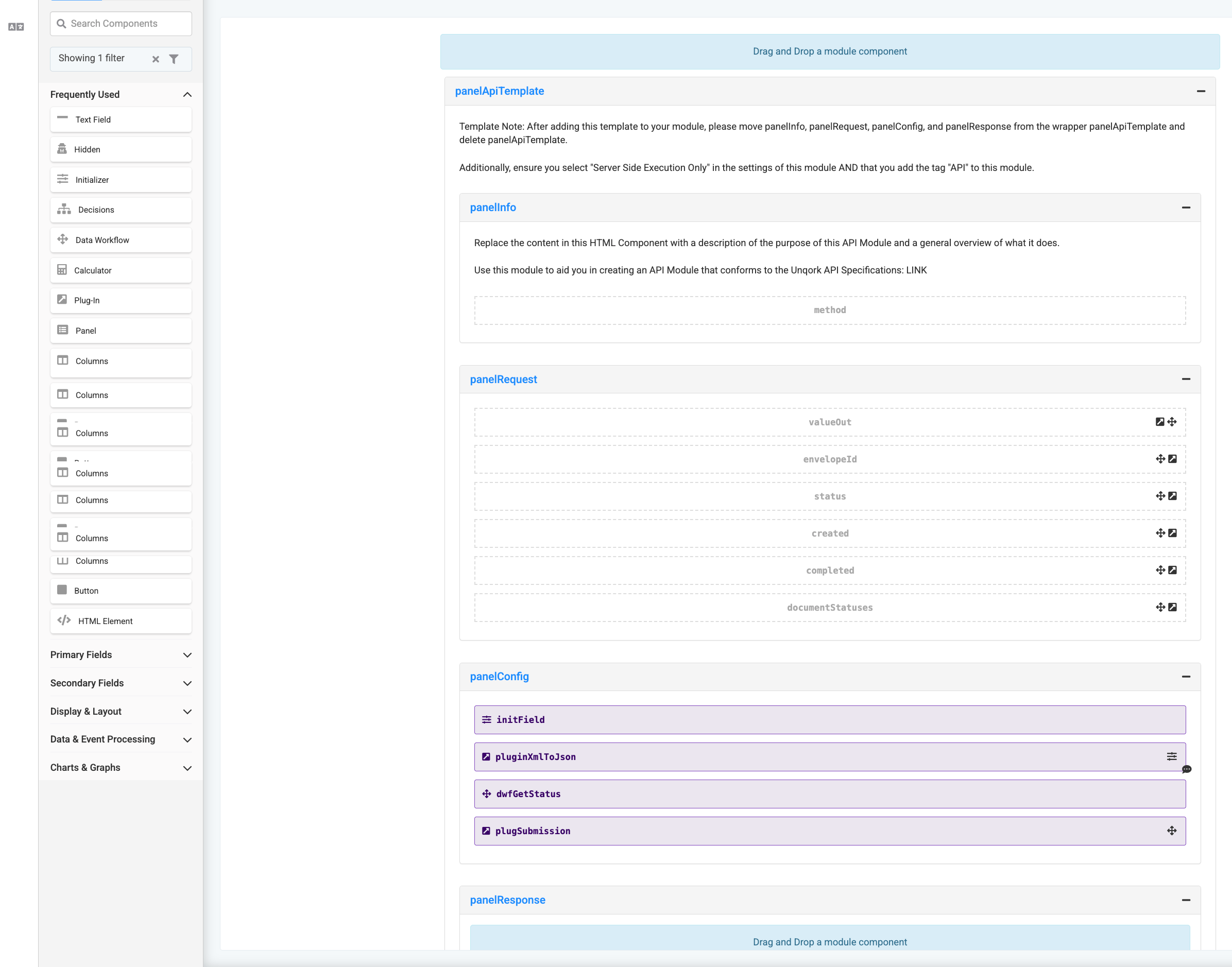

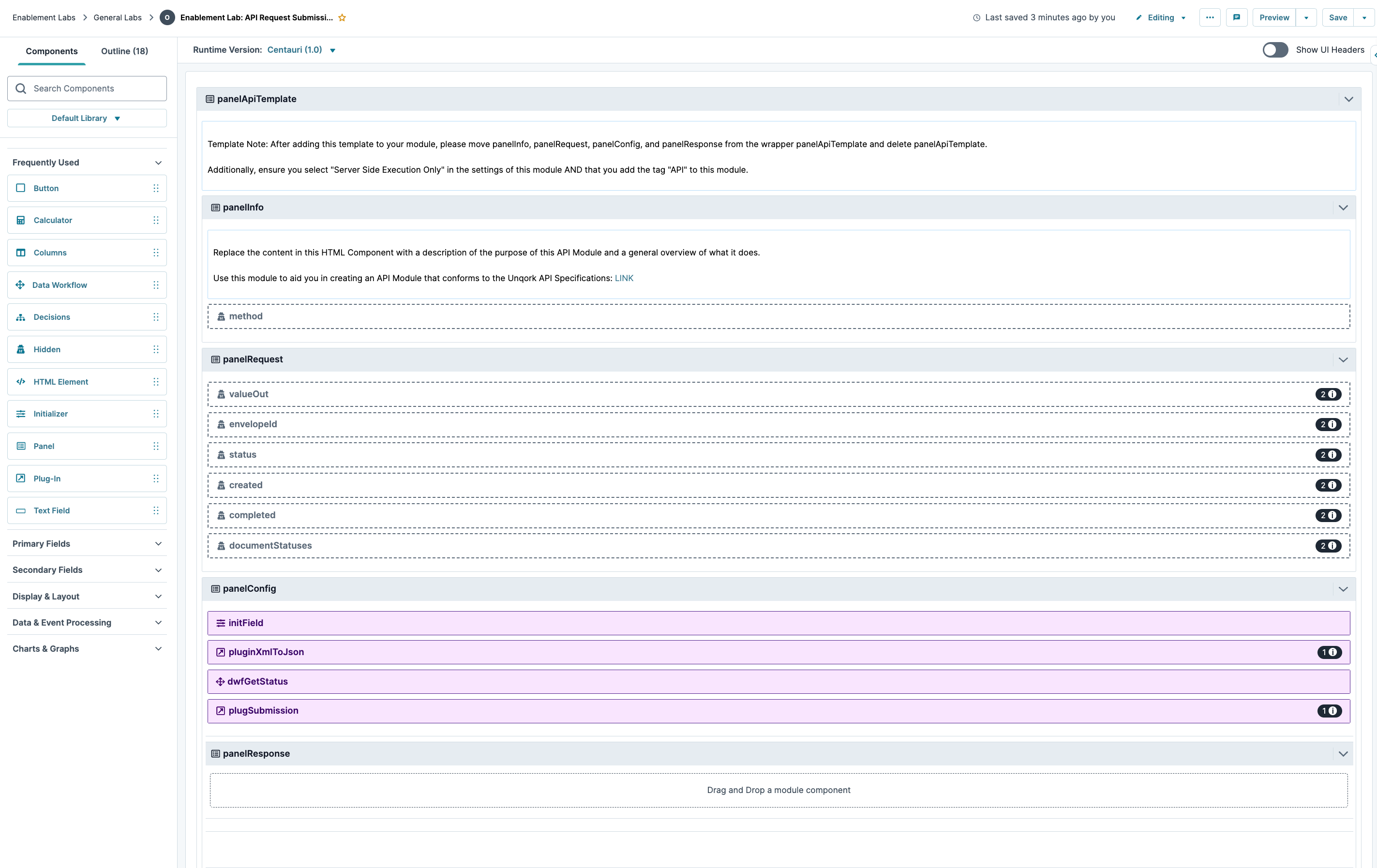

Here's how the completed Listener module looks in the Module Builder:

What You'll Learn

In this how-to guide, you'll create a module that accepts a DocuSign Connect webhook.

What You Need

To set up the Listener module, you need:

• 1 API (application programming interface) Specification snippet

• 6 Hidden components

• 2 Plug-In components

• 1 Initializer component

• 1 Data Workflow component

To set up the Listener module's Data Workflow, you need:

• 1 Input operator

• 6 Get operators

• 6 Output operators

• 1 Create Value operator

Configuration

Configure the Listener Module

First, you need to create the Listener module to connect with the DocuSign Connect webhook. When the Listener module receives the webhook request, the module runs. To build the Listener module using API best practices, begin with the API Specification snippet.

These instructions assume you have a workspace open, saved, and with a title.

To create the Listener module:

1. In the left sidebar of Module Builder, click the Snippets button.

2. In the Search Snippets field, enter API Specification.

3. Drag and drop the API Specification snippet onto your canvas.



4. Save your module.

Enable Execute via Proxy

Now you need to access the Module Settings to enable the Execute via Proxy endpoint for the webhook. You'll also set up Anonymous role permissions to Write. Once enabled, you can receive requests from your webhook service.

Avoid toggling the Act as Super-user when Server Side Executing to ON. This setting lets you use webhooks, but it weakens the security of your application.

1. In the Module Builder, hover over the left menu bar.

2. Click Settings.

3. Set the Server Side Execution Only toggle to ON.

4. Set Allow Access to Anonymous Users toggle to ON.

5. From the Anonymous role's Permission drop-down, select Write.



6. Click Save Settings.

7. Save your module.

Update the description HTML Element Component

The API Specification snippet contains an HTML Element component that describes the snippet's purpose. You can change this to display any information you want when building or using the webhook.

1. Hover over the description HTML Element component. You'll find this component in the panelInfo Panel component.

   A 5-button toolbar displays above the component on hover-over.

2. In the toolbar, click the   (Settings) button.

3. In the Display panel, enter a description in the webhook Content field. The image below shows an example of what that description looks like:



4. Click Save.

Update the method Hidden Component

1. Hover over the method Hidden component. You'll find this component in the panelInfo Panel component.

2. In the toolbar, click the   (Settings) button.

3. In the Default Value field, enter PUT.



4. Click Save.

Configure the panelRequest Hidden Components

Next, add 6 Hidden components. The first holds the output from your pluginSubmission Plug-In component. The remaining Hidden components store the DocuSign envelope attributes. For this example, the attributes are envelope ID, status, created, completed, and document statuses.

1. Drag and drop 6 Hidden components onto the canvas. Place the Hidden components in the panelRequest Panel.

2. In the Property ID and Canvas Label Text fields, enter the following:

   Property ID	Canvas Label Text
   valueOut	valueOut
   envelopeID	envelopeId
   status	status
   created	created
   completed	completed
   documentStatuses	documentStatuses

3. Save each component as you add it.

Configure the Initializer Component

This Initializer component triggers the pluginXmlToJson Plug-In component. You'll set up this component next.

1. Drag and drop an Initializer component onto the canvas. Place the Initializer in the panelRequest panel.

2. In the Property ID and Canvas Label Text fields, enter initField.

3. Set the Trigger Type as New Submission.

4. In the Outputs table, enter the following:

   Property ID	Type	Value
   pluginXmlToJson	trigger	GO



5. Click Save.

Configure the pluginXmlToJson Plug-In Component

Now, add a Plug-In that imports XML data, converts it to JSON, and triggers the Data Workflow.

1. Drag and drop a Plug-In component onto the canvas. Place your Plug-In in the panelRequest panel, below the Initializer component.

2. In the Property ID and Canvas Label Text fields, enter plugXmlToJson.

3. From the Internal Services drop-down, select Convert XML to JSON.

4. In the Inputs table, enter the following:

   Property ID	Mapping
   _request['body']	xmlData

5. In the Outputs table, enter the following:

   Property ID	Mapping
   valueOut	jsonData

6. In the Post Trigger field, enter dwfGetStatus.



7. Click Save.

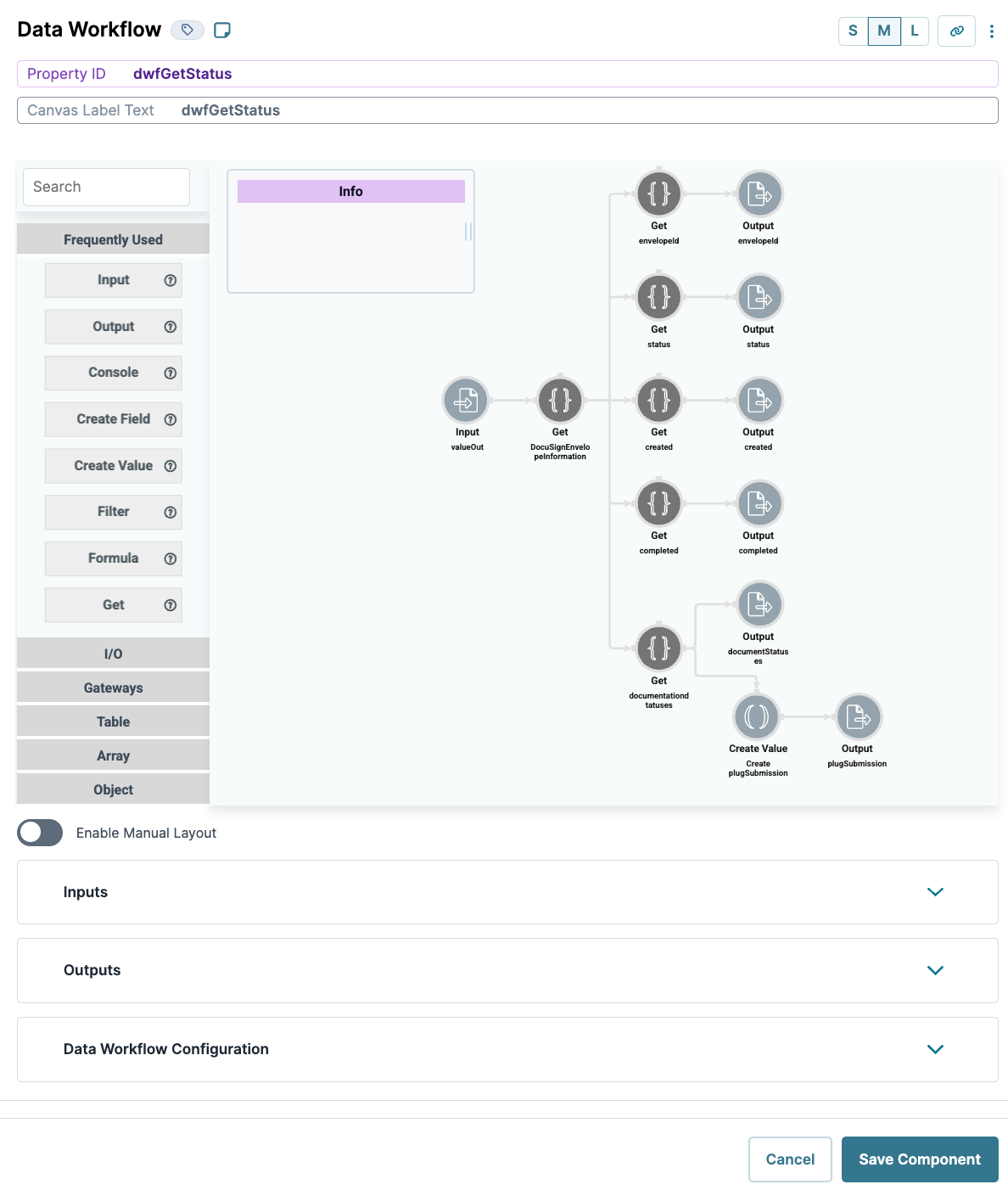

Configure the Data Workflow Component

Next, add your Data Workflow component. This data workflow transforms XML to JSON and triggers your pluginSubmission Plug-In component. You'll add this Plug-In component next.

1. Drag and drop a Data Workflow component onto the canvas, placing it in the panelRequest panel, below the pluginXmlToJson Plug-In component.

2. In the Canvas Label Text and Property Name fields, enter dwfGetStatus.



Configure the Input Operator

1. Drag and drop an Input operator onto your Data Workflow canvas.

2. Configure the Input operator's Info window as follows:

   Setting	Value
   Category	Input
   Component	valueOut
   Required	Yes
   Source	Default

Configure the DocuSignEnvelopeInformation Get Operator

1. Drag and drop a Get operator onto your Data Workflow canvas.

2. Configure the Get operator's Info window as follows:

   Setting	Value
   Category	Get
   Label	DocuSignEnvelopeInformation
   Path	DocuSignEnvelopeInformation

   DocuSignEnvelopeInformation is the first tag you expect in a DocuSign call.

3. Connect the output port (right) of the Input operator to the input port (left) of the Get operator.

Configure the envelopeId Get Operator

Now, configure Get and Output operators for each attribute in your envelope.

1. Drag and drop a Get operator onto your Data Workflow canvas.

2. Configure the Get operator's Info window as follows:

   Setting	Value
   Category	Get
   Label	envelopeId
   Path	EnvelopeID[0]

3. Connect the output port (right) of the DocuSignEnvelopeInformation Get operator to the input port (left) of the envelopeId Get operator.

Configure the envelopeId Output Operator

1. Drag and drop an Output operator onto your Data Workflow canvas.

2. Configure the Output operator's Info window as follows:

   Setting	Value
   Category	Output
   Component	envelopeId
   Action	value

3. Connect the output port (right) of the envelopeId Get operator to the input port (left) of the envelopeId Output operator.

Configure the status Get Operator

1. Drag and drop another Get operator onto your Data Workflow canvas.

2. Configure the Get operator's Info window as follows:

   Setting	Value
   Category	Get
   Label	status
   Path	Status[0]

3. Connect the output port (right) of the DocuSignEnvelopeInformation Get operator to the input port (left) of the status Get operator.

Configure the status Output Operator

1. Drag and drop another Output operator onto your Data Workflow canvas.

2. Configure the Output operator's Info window as follows:

   Setting	Value
   Category	Output
   Component	status
   Action	value

3. Connect the output port (right) of the status Get operator to the input port (left) of the status Output operator.

Configure the created Get Operator

1. Drag and drop another Get operator onto your Data Workflow canvas.

2. Configure the Get operator's Info window as follows:

   Setting	Value
   Category	Get
   Label	created
   Path	Created[0]

3. Connect the output port (right) of the DocuSignEnvelopeInformation Get operator to the input port (left) of the created Get operator.

Configure the created Output Operator

1. Drag and drop another Output operator onto your Data Workflow canvas.

2. Configure the Output operator's Info window as follows:

   Setting	Value
   Category	Output
   Component	created
   Action	value

3. Connect the output port (right) of the created Get operator to the input port (left) of the created Output operator.

Configure the completed Get Operator

1. Drag and drop another Get operator onto your Data Workflow canvas.

2. Configure the Get operator's Info window as follows:

   Setting	Value
   Category	Get
   Label	completed
   Path	Completed[0]

3. Connect the output port (right) of the DocuSignEnvelopeInformation Get operator to the input port (left) of the completed Get operator.

Configure the completed Output Operator

1. Drag and drop another Output operator onto your Data Workflow canvas.

2. Configure the Output operator's Info window as follows:

   Setting	Value
   Category	Output
   Component	completed
   Action	value

3. Connect the output port (right) of the completed Get operator to the input port (left) of the completed Output operator.

Configure the documentationStatuses Get Operator

1. Drag and drop another Get operator onto your Data Workflow canvas.

2. Configure the Get operator's Info window as follows:

   Setting	Value
   Category	Get
   Label	documentationStatuses
   Path	DocumentationStatuses[0]

3. Connect the output port (right) of the DocuSignEnvelopeInformation Get operator to the input port (left) of the documentationStatuses Get operator.

Configure the documentationStatuses Output Operator

1. Drag and drop another Output operator onto your Data Workflow canvas.

2. Configure the Output operator's Info window as follows:

   Setting	Value
   Category	Output
   Component	documentationStatuses
   Action	value

3. Connect the output port (right) of the documentationStatuses Get operator to the input port (left) of the documentationStatuses Output operator.

Configure the Create Value Operator

1. Drag and drop a Create Value operator onto your Data Workflow canvas.

2. Configure the Create Value operator's Info window as follows:

   Setting	Value
   Category	Create Value
   Label	Create plugSubmission
   Expression/Value	='GO'

3. Connect the output port (right) of the documentationStatuses Get operator to the argument port (top) of the Create Value operator.

Configure the plugSubmission Output Operator

1. Drag and drop an Output operator onto your Data Workflow canvas.

2. Configure the Output operator's Info window as follows:

   Component	Action
   Category	Output
   Component	plugSubmission
   Action	trigger

3. Connect the output port (right) of the Create Value operator to the input port (left) of the plugSubmission Output operator.

4. Click Save.

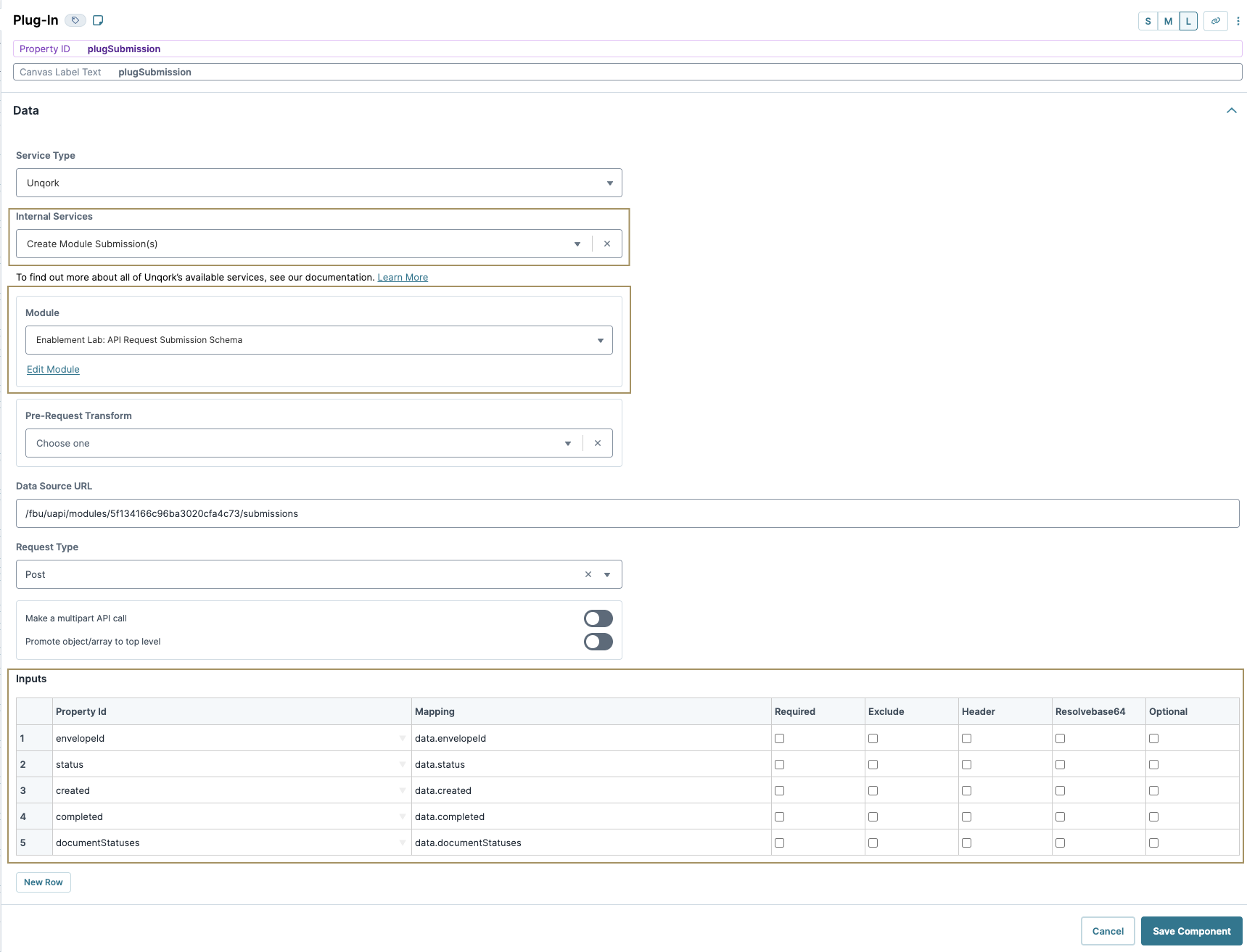

Configure the plugSubmission Plug-In Component

This Plug-In component takes the JSON fields pulled from the transformed XML envelope data and creates a submission.

1. Drag and drop a Plug-In component onto the canvas. Place the Plug-In inside the panelConfig Panel, below the Data Workflow component.

2. In the Property ID and Canvas Label Text fields, enter plugSubmission.

3. From the Internal Services drop-down, select Create Module Submissions(s).

4. From the Module drop-down, select Enablement Lab: API Request Submission Schema. This is the prebuilt Submission Schema module.

5. In the Inputs table, enter the following:

   Property ID	Mapping
   envelopeId	data.envelopeId
   status	data.status
   created	data.created
   completed	data.completed
   documentStatuses	data.documentStatuses

   This data maps back to the Submission Schema module's Hidden components.



6. Click Save.

7. Save your module.

It's important to note that your Listener module must link to DocuSign Connect to work. If you test your module before linking to DocuSign, your webhooks won't work.
